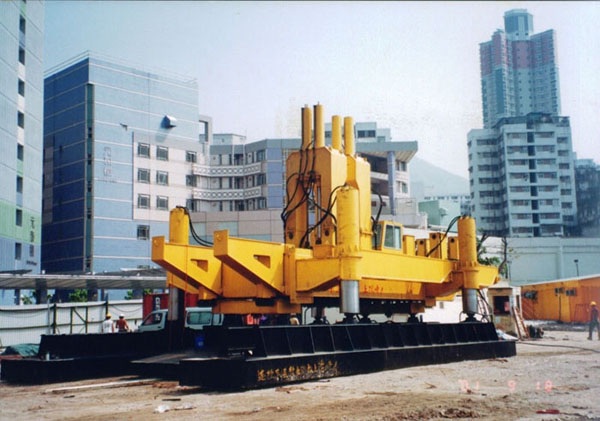

ZYC900B piling machine
產品型號：ZYC900B
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
Our Main product: ZYC series multi-functional Hydraulic Static Pile Driver Self-developed with 5 up-to-date patents.
The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape steel pile, and then driving the pile into ground by hydraulic pressing.
Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-shaped pile in clay, soft soil and sandy ground.
It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile driving, reliable construction quality and environmental protection, high efficiency, energy saving. It is welcomed by the customers with wide market prospect.
產品規格
Features for ZYC900B:
•Rated piling pressure(tf):900
•suitable pile:¢400-800
•Max. Piling speed:7.0
•Piling stroke:1.8
•Max. Longitudinal pace:3.6
•Max. Transverse pace:0.6
•Max. Rise stroke:1.1
•Max.rotation angle per time:8
•Rated hydraulic system pressure:25(20)
•Hydraulic Pump:3×125 + 1×80
•Motor power:3×37 + 1×37
•Max. Crane lifting weight:20t
•Hanging pile length:15m
•Intensity of pressure:15.5/20.0
•Total weight≥:900t
