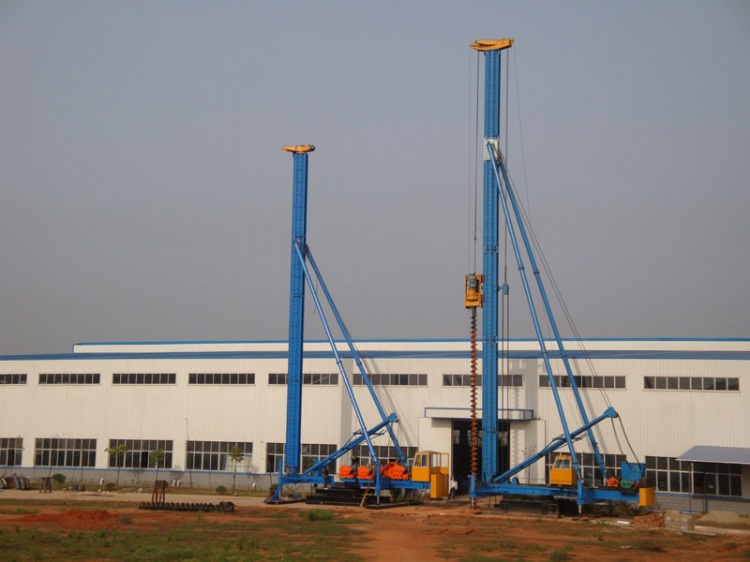

CFG series hydraulic foot-step long screw drilling machine
產品型號：CFG20
產品分類：自動化設備/產業機械 / 其他產業機械 / 工業儀器設備
產品特色
Including Pile Rig & Drilling system with logical structure, advanced technology, reliable performance, possessing distinct advantage than the traditional rig.
Adopting centralized electro-hydraulic control, full-hydraulic foot-step chassis.
Drilling system power adopting tri-ring reducer, drill rod adopting key flange connector.
Suitable for technics of super-liquid, high-pressure casting, and dry drilling.
Applicable for ground of clay, gravel, sand and soil, etc.
產品規格
Features:
- System control:Hydraulic control
- Pillar support:Three-point support
- Rated load:240kN
- Pillar track space:600×Φ102mm
- Platform rotary angle:0-360°
- Long boat moving pace:1200
- Motor power:11kW
- Hydraulic system pressure:16Mpa
- Machine weight:40t
- Drilling hole diameter::Φ400∼Φ600
- Power head power:37×2
- Drilling depth:20m
- Allowable drill pull force:240kN
- Max. rotate speed:24.2r/min
- Output torque:35.5kN.m
