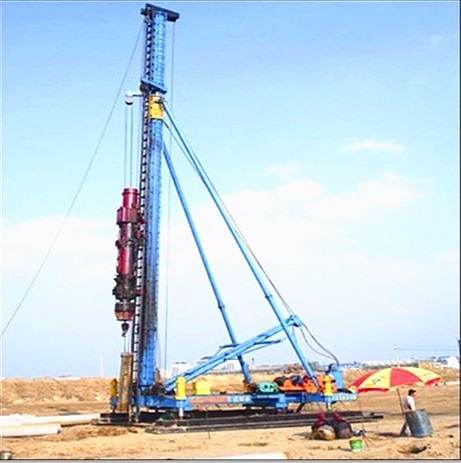

JBY Series Hydraulic Foot-Step Pile Rig
產品型號:JBY62
產品分類:自動化設備/產業機械 / 其他產業機械 / 工業儀器設備
產品特色
JBY series Foot-step Multi-functional Pile Rig could work with diesel hammer, hydraulic driving hammer, and long screw drill etc. It adapts to various technics of foundation piling, and it is perfect upgrade product.
Adopting of centralized electro-hydraulic controlling system, hydraulic foot-step chassis, hydraulic cylinder lifting, moving mechanism and rotary platform, moving quickly and agilely.
Logical structure, advance technology, smooth operation, elegant appearance, high ratio of performance and price.
Easy assembly & disassembly, quick & low-cost transportation.
High adaptive faculty to construction ground with low intensity of pressure, quick pile connection, easy operation, safe & reliable, saving labor force, high efficiency.
產品規格
Features:
System control:Hydraulic control
Pillar support:Three-points support
Rated load:320kN
Pillar hight:22.5m
Pillar diameterΦS:630mm
Pillar track space:600×Φ102mm
The inclination of pillar:Ahead 12º/Back 5º
Max. working ground gradient:3º
Working dimension (L × W × H):11000×6760×25000mm
Transportation dimension (L × W × H):10000×32400×2150mm
Max. long bort dimension (L × W × H):10000×1000×500mm
Max. short bort dimension (L × W × H):2000×3760×900mm
Total weight:58t
