產品規格

Specification:

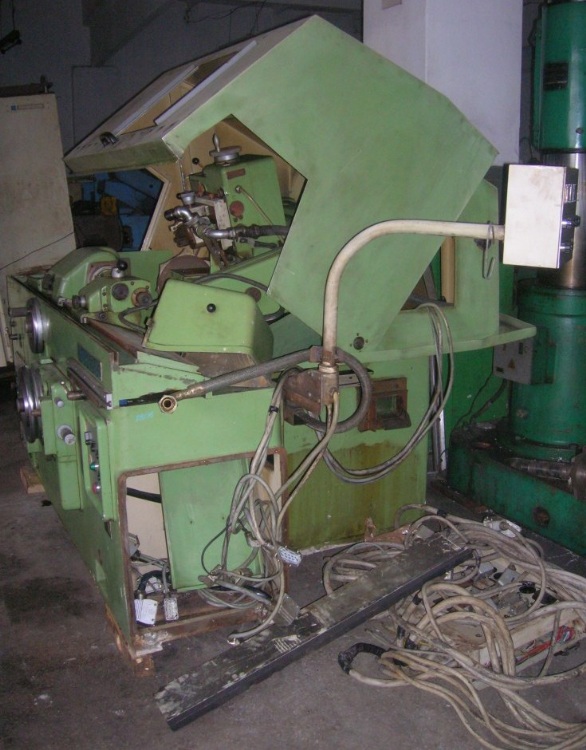

Internal thread grinder
grinding length: 100 mm
distance between centers: 860 mm
threat diameter: min: 14 mm - max: 250 mm
max orientation angle: 40 degrees
grinding wheel:
-- diameter: min. 8 mm, max. 100 mm
-- width: min. 3.5 mm, max. 24 mm
grinding wheel speed
-- from 4800 rpm till 11000 rpm
-- from 11600 rpm till 27000 rpm
parts-holder spindle speeds
variable 0.40 rpm to 160 rpm
power required 50 Hz - 3x 380 Volt - 16 kVA
dimensions:
-- length: 1855 mm - width: 3500 mm - height: 1700 mm
weight: 4850 kg

Nice workable condition . There are full set of change gears and dresser unit.
There is no cooling tank.
