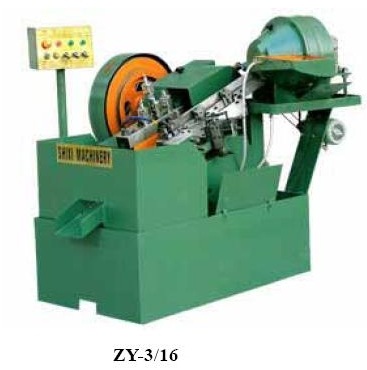

Thread rolling machine
產品型號：ZY-3/16B
產品分類：自動化設備/產業機械 / 螺絲，螺帽製造機 / 螺絲成型機
產品特色
Features:
1. Precise design, easy operation.
2. High speed and stability fitting your goal of efficiency.
3. Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
4. The forced feed lubricator guarantees oil-film lubrication of the rubbing parts and ensures the lasting use of the machine.
產品規格
Specifications:
|
MODEL |
ZY-003A |
ZY-004A |
ZY-004B |
ZY-3/16B |
ZY-3/8 |
|
Blank Dia. (mm) |
Φ1-φ2.6 |
Φ1.7-φ3 |
Φ2.6-φ4 |
Φ3-φ6 |
Φ5-φ10 |
|
Blank Length (mm) |
16 |
25 |
40 |
55 |
16-100 |
|
Capacity (pcs./min.) |
400-500 |
280-380 |
235-280 |
128-172 |
85-90 |
|
Moving die (mm) |
55×15×20 |
80×20×25 |
80×20×40 |
105×25×55 |
165×25×105 |
|
Stationary Die (mm) |
45×15×20 |
65×20×25 |
65×20×40 |
90×25×55 |
150×25×105 |
|
Motor (kw) |
1.1 |
1.5 |
1.5 |
4 |
7.5 |
|
Oil Pump (w) |
40 |
40 |
40 |
40 |
370 |
|
Machine Weight (kg) |
300 |
500 |
900 |
900 |
1800 |
|
Overall Size (cm) |
143×100×145 |
160×112×120 |
110×60×106 |
138×70×132 |
225×155×160 |
