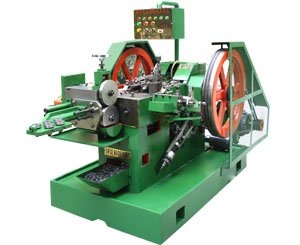

Head machine
產品型號：SX-35A
產品分類：自動化設備/產業機械 / 螺絲，螺帽製造機 / 打頭機
產品特色
The precise and stable structure can make dia.12mm flat washer screws with flexibility.
China patented united formed punch lifting plank can diminish the cumulative deviation in assembly to ensure the stability of the lifting system.
The flexible lifting system ensures the efficiency of the machine.
Slide side guide can diminish the swing of punch holder.
Hard and stable foundation improves the rigidity of the machine and the stability of heading.
產品規格
Specifications:
|
MODEL |
SX-5A |
SX-20A |
SX-25A |
SX-35A |
|
Blank Dia. (mm) |
φ1-φ3 |
φ3-φ6 |
φ3-φ8 |
φ4-φ10 |
|
Blank Length (mm) |
24 |
60 |
60 |
110 |
|
Output (pcs./min.) |
170-200 |
110-130 |
83 |
55-130 |
|
Stroke (mm) |
38 |
90 |
90 |
148 |
|
1st Die Size (mm) |
φ20×35 |
φ35×75 |
φ48×100 |
φ54×157 |
|
1st Punch Size (mm) |
φ18×40 |
φ32×65 |
φ36×78 |
φ38×85 |
|
2nd Punch Size (mm) |
φ18×44 |
φ32×67 |
φ36×80 |
φ38×103 |
|
Cut-Off Die Dia. (mm) |
φ13.5×30 |
φ19×40 |
φ25×50 |
φ30×60 |
|
Cutter size (mm) |
44×22×5.8 |
66×36×10 |
75×35×12.5 |
85×45×14 |
|
Main Motor (kw) |
1.1 |
3 |
7.5 |
15 |
|
Oil Pump (w) |
180 |
180 |
180 |
180 |
|
Machine Weight (kg) |
500 |
1900 |
2600 |
4500 |
|
Overall Dimension (cm) |
140×75×85 |
221×125×140 |
243×128×148 |
277×108×117 |
|
Remark |
Options: 1. Microcomputer (Auto-checker) 2. Counter, 3. Frequency conversion actiyator 4.PKO Note: PKO is not applicable to SX-5A. |
|||
