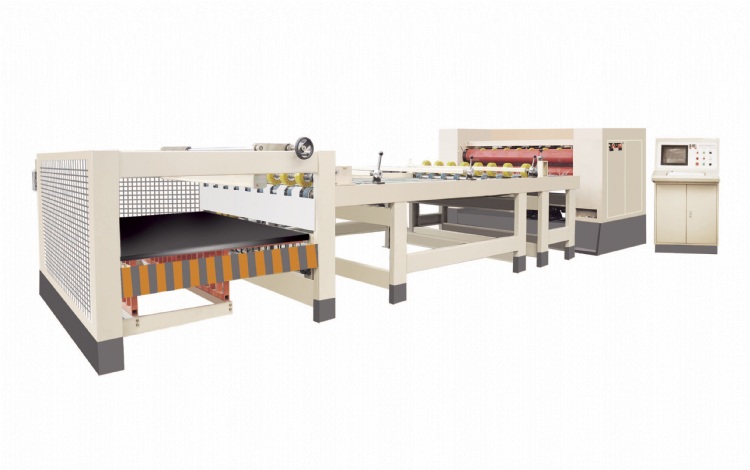

NC Single Wall Slitter - Cutoff - Conveyor
產品型號:NC Single Wall Slitter - Cutoff - Conveyor
產品分類:自動化設備/產業機械 / 造紙機械 / 瓦楞紙箱加工成型機
產品特色
Ideal choice for single wall corrugated paperboard cutting equipment.
Slitting, cutting and collecting continues without breaking, at high speed, high efficiency high energy saving, with ensured paperboard qulity.
產品規格
Function
Ideal choice for single wall corrugated paperboard cutting equipment.
Slitting, cutting and collecting continues without breaking, at high speed, high efficiency high energy saving, with ensured paperboard qulity.
Feature
Slitter Part:
1.Thin tungsten alloy steel blade for high quality slitting with fine trimmed thick edge, eliminates crushed flutes on the paperboards edges .
2.Multi options: bowl blade, manual thin blade and NC thin blade for slitter. Blades fast positioning within 10 seconds by computer control system.
3.High - precision ball screw, mechanism alignment tolerance ≤±0.5mm.
4.New type carbon fibre blade holder, steel comb blade holder, Teflon blade holder improve the whole machine practicality and stability.
Cutter Part:
1.High quality AC servo motor and Germany advanced servo motor driving system, for higher precision and lower power consumption.
2.The control system is in accordance with CE standard and passed strict industrial testing, with higher reliability and longer serving life.
3.Color screen shows the whole production scenario. Auto order change with warning signal before order change starts.
4.Lubrication:Hand - operated force -feeding or oil bath.
5.Cutting tolerance: ≤±1mm at constant speed, ≤±1.5mm at average variable speed.
Stacking part:
1.Three independent paperboard conveying sections, paperboard stacking and conveying to transverse ejection part by inverter controlling.
2.Pheumatic control for batch changing, pile changing, and auto counting.
3.Paperboard lifting type stacking platform, computer controlled, stacking neatly .
4.When reached to the pre-setted quantity, the paperboards are ejected transversely.
5.The paperboard back baffle with new apparatus, improving the paperboard tidiness.
Execute part
1.High quality grey cast iron(HT300) for gear box, precision machined, aging treated
2.High quality seamless, aging treated, steel tube for spiral knife shaft and paperboard carrying roll, dynamic balanced
3.ZG230-450 for blade fixing plate
4.Special material for comb - blade holder
5.High quality thin tungsten alloy blade
6.High speed tool steel spiral knife
7.Hantang material conveying belt
Controlling Part
1.Cutoff control: KEB AC SERVO driver, Germany; JPS SERVO controller, Taiwan
2.Conveying Control: Delta Inverter, Taiwan. Toshiba inverter, Japan.
3.Stacking control: Delta inverter, Taiwan
4.Braking device: Jiuan braking resistor, Shanghai.
5.Operating monitor: MCGS color touch screen or standard industrial computer.
6.Monitoring control: Delta PLC, Taiwan; P+F proximity switch, photoelectric switch, Germany; encoder(Incremental and SINCOS) .
7.Low voltage apparatus: Schneider, Taian, Chint.
Power, pneumatic part
1.Italy Phase AC permanent magnet synchronization servo driver
2.Shanghai Realland inverter motor, Shandong Lijiu Inverter Motor, China
3.SMS. JDK . SNS and the other brand pneumatic element
Convey part
1.Imported elastic coupling, high speed, long serving life.
2.Best selected high quality alloy steel (20CrMnTi), after carburization, quenching for high precision gear, imported synchronous belt.
3.Taiwan Silvering, BERTO ball screw, linear guides
4.NSK, HRB high precision bearing
Parameters
Type NO. | NCDW-1600 | NCDW-1800 |
Machine Size (mm) | 8500X2750X1600 | 8500X2950X1600 |
Max Slitting Width | 1650mm | 1850mm |
Min slitting Width | 220mm | 220mm |
Max Slitting Thickness | 8mm | 8mm |
Cutoff Length | 350-1400mm | 350-1400mm |
Total Power | 20KW(Direct Driven Cutoff 8.4KW) | 20KW(Direct Driven Cutoff 8.4KW) |
|
|
|
Type NO. | NCDW-2000 | NCDW-2200 |
Machine Size (mm) | 8500X3150X1600 | 8500X3350X1600 |
Max Slitting Width | 2050mm | 2250mm |
Min slitting Width | 220mm | 220mm |
Max Slitting Thickness | 8mm | 8mm |
Cutoff Length | 350-1400mm | 350-1400mm |
Total Power | 21KW(Direct Driven Cutoff 8.4KW) | 25KW(Direct Driven Cutoff 12KW) |
