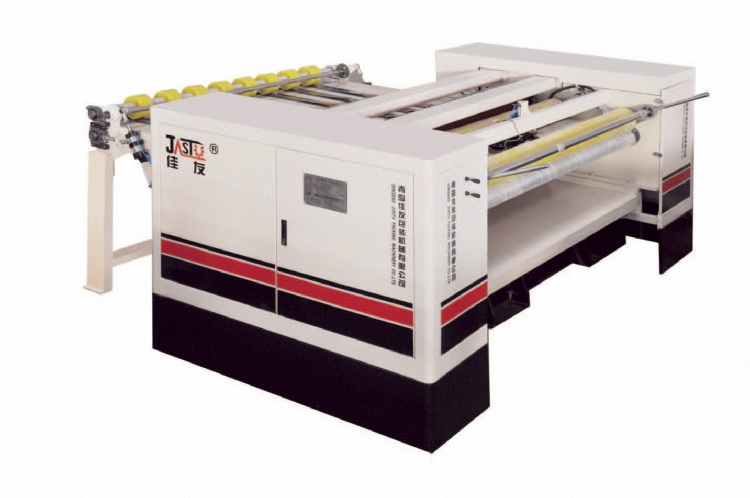

NC High Speed Direct Driven Double Drivers Spiral Knife Cutoff
產品型號:Double Drivers Spiral Knife Cutoff
產品分類:自動化設備/產業機械 / 造紙機械 / 瓦楞紙箱加工成型機
產品特色
Special designed machine for high speed, wider width corrugated paperboard production line, full computer controlled, quick order change and high precision cutting.
The perfect combination of JUSTU mechanical design with the Euro advanced system control, makes the equipment as the best ideal choice for the custom.
產品規格
Function
Special designed machine for high speed, wider width corrugated paperboard production line, full computer controlled, quick order change and high precision cutting.
The perfect combination of JUSTU mechanical design with the Euro advanced system control, makes the equipment as the best ideal choice for the custom.
Feature
1. High quality industrial computer or HMI composes the computer control system.
2. A/C servo motor, imported special drive controlling system.
3. Can be lined with the production management system, auto or manual order change without downtime.
4. Double spiral knife roll structure, small cutting force, higher efficiency and smooth rotation.
5. Special materials made spiral knife, rational designed roll structure, longer serving life.
6. Rational designed machinical structure, the feeding section connected with the main body via the rails, convient for the knife adjusting.
7. The precision gear is made after forging, fine finishing, heat treating, with tiny gear backlash, smooth transmission and lower noise.
8. High cutting precision, at average speed: ≤±1mm ; at average variable speed: ≤±1.5 mm.
9. Synchronous drivers at both sides, improved equipments rigid for high speed, high precision cutting.
10. Imported energy storage capacitor, high energy - efficient, highest speed: 300m/min.
Power, pneumatic part
1. Phase AC servo motor, Italy
2. Shanghai Realland, Shandong Jiuli converter motor
3. SMS. JDK, SNS and the other brand pneumatic element.
Convey part
1. Imported elastic coupling, high speed, high efficiency, long serving life
2. Best selected high quality alloy steel (20CrMnTi) , after carburization, queching, which improve the equipment steadiness.
3. Timing belt for the board feeding and output part, transmissing steadily, low noisy, which make feeding and output part work synchronously.
4. Japan NSK, China HRB high precision bearing.
Execute part
1. High quality grey cast iron(HT300) for gear box, precision machined, aging treated
2. High quality seamless, aging treated, steel tube for spiral knife shaft and paperboard carrying roll, dynamic balanced
3. High speed tool steel for spiral knife
Controlling Part
1. Cutoff Control: KEB AC servo controller, Germany; Siemens AC servo controller; Rexroth AC servo controller.
2. Conveying Control: Delta Inverter, Taiwan.
3. Braking Device: Jiuan braking resistor,Shanghai; Imported electric capacity energy storing device.
4. Operation Monitor: MCGS color touch screen or standard industrial computer.
5. Monitoring control: Taiwan Fatek or Siemens PLC; Germany P+F approach switch, optoelectronic switch; Japan NEMICON encoder.
6. Low voltage apparatus: Scheider, Taian, Chint
Parameters
Type NO.
|
NCHQ-2500-1-SQ-250
|
NCHQ-2500-2-SQ-250
|
Machine Size(mm) | 5400X1600X1428 | 5400X1800X1700 |
Max Slitting Width | 2550mm | 2550mm |
Total Power | 60.7KW | 130.77KW |
