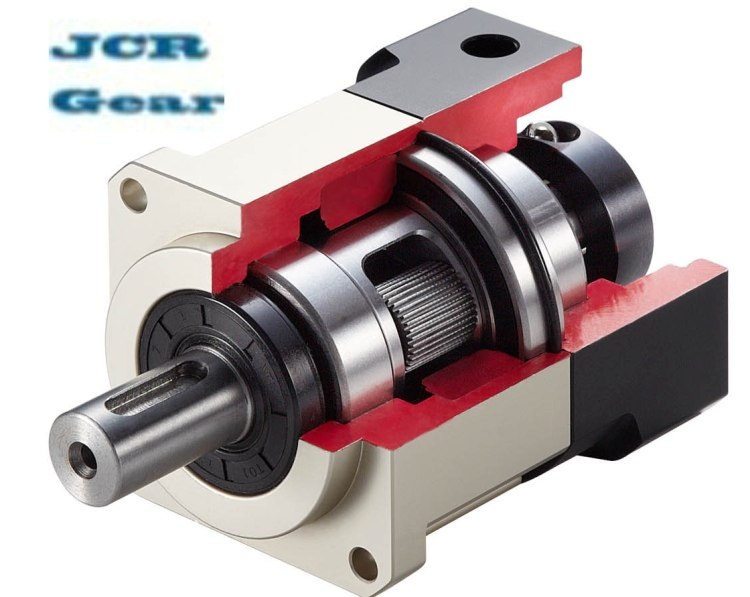

伺服專用行星齒輪箱
產品型號：GF
產品分類：自動化設備/產業機械 / 自動化設備 / 工業用機器人及週邊設備
產品特色
高扭力設計 歐洲款 雙倍加厚齒輪
產品規格
| Measurement | Number | #60 | #90 | #120 |
| A1 P.C.D hole | 70 | 100(105) | 130(140) | |
| A2 Bolt Dia. | 5.5 | 7 | 9 | |
| A3 O/P shaft Dia. | 16 | 22 | 32 | |
| A4 Pilot Dia. | 50 | 80 | 110 | |
| Output Terminal Size | A6 Spindle Thread | M5XP0.8 | M6XP1.0 | M8XP1.25 |
| A8 Keyway Width | 5 | 6 | 10 | |
| A9 Keyway height+O/P shaft Dia. | 18 | 24.5 | 35 | |
| B1 O/P Flange | 62 | 90 | 120 | |
| B2 O/P Shaft Length | 36 | 47.5 | 65 | |
| from flange to top of shaft | ||||
| B3 Pilot Thickness | 7 | 10 | 12 | |
| B5 Keyway Length | 20 | 25 | 40 | |
| B6 O/P Shaft Length | 28 | 36 | 50 | |
| B7 Flange Thickness | 8 | 9 | 12 | |
| Outter Dimension | B9 (L1) Housing Length | 115 | 142 | 191.8 |
| B9 (L2) Housing Length | 147.5 | 178.5 | 240.3 | |
| ※C1 P.C.D Hole | 70 | 90 | 145 | |
| ※C2 Bolt Dia. | M5XP0.8 | M6XP1.0 | M8XP1.25 | |
| ※C3 I/P Shaft Dia. | 14 | 19 | 22(24) | |
| ※C4 Deep of I/P Housing | 32 | 45 | 65 | |
| I/P Terminal Size | ※C5 I/P Pilot | 50 | 70 | 110 |
| C7 I/P Flange Width | 62 | 90 | 120 | |
| A5 Pilot Thickness | 5 | 8 | 7 | |
| A10 I/P Flange to Pin Center | 14 | 15 | 28.5 | |
| ※ it means be changed according to different size of servo motor | ||||
