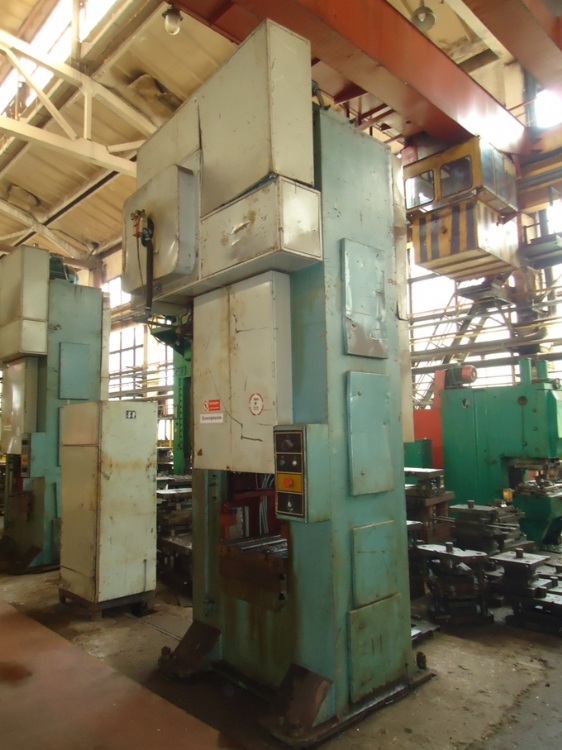

Trimming press LK160

 Some information:
                  Trimming press LK160
                  160 tn effort
                  1990 year of manufacturing
                  made by Strojarne Piesok, Czechoslovakia

   Specification:
                 Capacity, ton 160
                 Table size, mm 710 x 810
                  Ram size, mm 670 x 670
                  Shut height, mm 560
                  Ram stoke, mm 200
                  Ram stokes per minute 36
                  Bolster plate-to-ram adjustment stroke, mm 120
                  Bolster plate thickness, mm 120
                  Table gap diameter, mm 320
                  Ram gap diameter, mm 65
                  Main motor power, kW 18,5
                  Total power required, kW 28,5
                  Press dimensions, mm 1820 x 1750 x 4200
                  Press weight, kg 11900

     There are two presses available. Thay are complete and in good condition.
