Trimming  press Voronezh K2540

 Some information:
                  Trimming  press  Voronezh K2540
                  1000 tn effort
                  1979 year of manufacturing
                  made by Voronezh plant,Russia

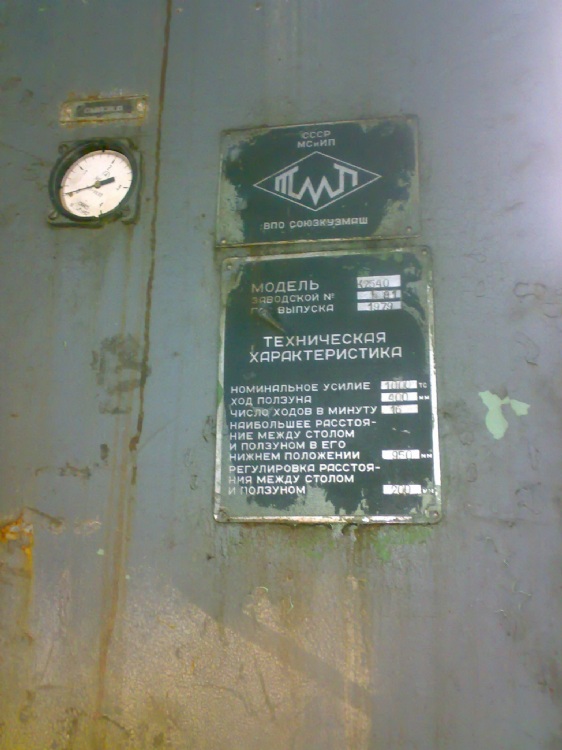

   Specification:
                 Nominal force 1000 t
                 Slider stroke 400 mm
                 Number of strokes per min 20
                 Number of single turn - on 15
                 The closed hight 730 mm
                 Slider adjustment 200 mm
                 Table : 1250 x 1250 mm
                 Bolster thickness 260 mm
                 Slider : 1200 x 1460 mm
                 Hole in table 800 x 800 mm
                Window in column 1260 x 780 mm
                Weight: 80000 kg

   Good  condition .
   Revision must be done at the electric and hydraulic part of the machine.
   Press has worked very little.
