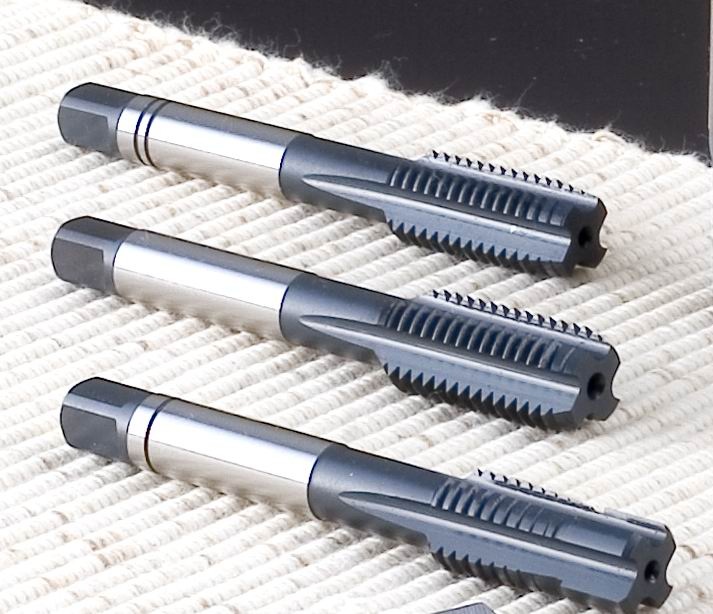

Hss Hand Tap
產品型號：G Series
產品特色
HSS hand tap
1.thread symbol:M
2.pitch diameter:YH / JIS/DIN/ANSI/ISO/Modi
3.surface:bright
4.suitable for hole condition
standard taps for a variety of application:
YH / JIS/DIN/ANSI/ISO/Modi etc.
thread symbol: UNC/F
pitch diameter limits: JIS II
chamfer length: 1.5P;5P;9P
tap materials: HSS
surface treatmet: bright
suitable for hole condition
HT Series Details
thread size:m2*0.4~m36*2
L:40~110mm
l: 15~45mm
d: 3~28mm
K: 2.5~21mm
Kl: 5~24mm
flutes: 3~4
產品規格
HSS Hand Tap
It works like a external thread rolling.
- It does not cut the threads, threfore does not make chips.
- It performs in ductile materials such as die-cast,brass,copper, aluminum and steels up to 700N/
High quility with competitive price
