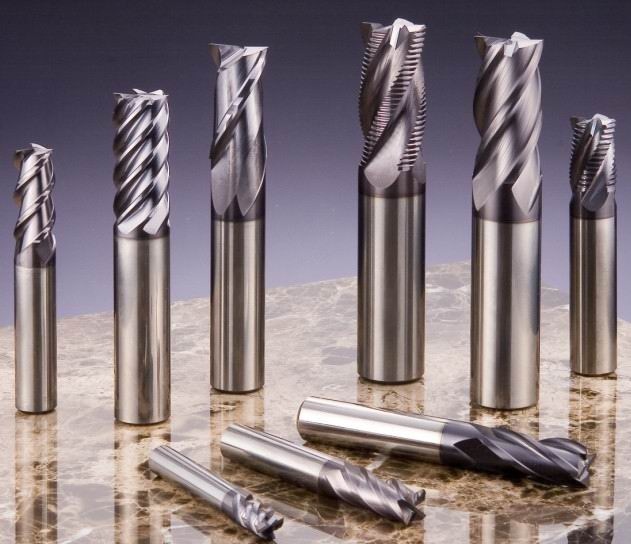

HSS Co8 End Mill fine pitch short length roughing
產品型號：EH Series
產品特色
End Mill HSS Co8 fine pitch short length roughing
1.HSS Co8
2.3~6 flute
3.hardness: HRc20~40
4.flat shank
Place of Origin Liaoning, China (Mainland)
Brand Name Dalian Zhida Precision Tool Co., Ltd.
Model Number E series
Material High Speed Steel
Type End Mill
HSS Co8 roughing end mill
Machine Type Milling Machine
Type Milling Cutter
產品規格
HSS Co8 fine pitch short length roughing end mills
Materials: HSS Co8(cobalt 8% HSS)
DIN844
30°helix angle for square end mill
3~6 flute
Flat shank(DIN1835B)
Fine pitch
For side cutting
TiN-coated and TiCN-coated available
This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad spectrum of materials having up to high tensile strength. In many case, the milled surfaces are of acceptable quality.
Main details:
Mill diameter: 6~40mm
Shank diameter: 6~32mm
Length of cut: 13~63mm
Overall length: 57~155mm
No. of flute: 3~6
