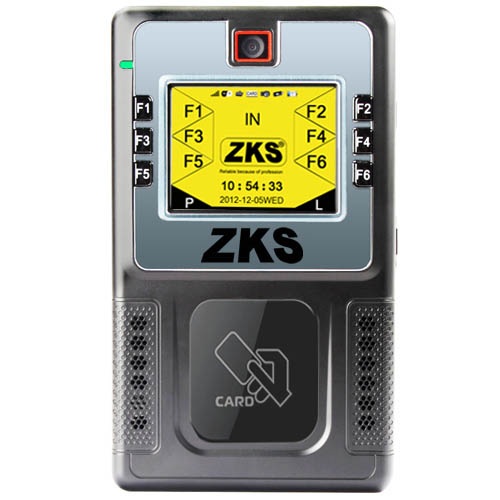

ZKS T8-TOUCH1
產品型號:ZKS T8-TOUCH1
產品特色
T8 TOUCH1-The Unique Smart RFID Terminal:
Main: Security Surveillance, Access Control, Time Attendance, Notice, DST, Duress Alarm, Web Server
Configuration: Linux system, TCP/IP, USB, SD Card, Camera, Multi-touch Screen, (optional: WIFI or GPRS)
產品規格
The T8 TOUCH1 is a touch-screen smart fingerprint terminal developed by ZKS Inc. It is the first generation SFT, and successor to the T8. It is particularly marketed for high end biometric identification security consumption, such as security surveillance and access control, time attendance, notice, and DST, and duress alarm, and for web server. The T8 TOUCH1 runs the Linux operating system. TFT 3.5 inches color LCD, showing personnel image, advertising and radio and so on; Inimitable and fancy design; Particular six kinds of shifts check on work accurate attendance advantageously. It is a kind of ideal product for high end consumption.
Features:
T8 TOUCH1-The Unique Smart RFID Terminal:
Main: Security Surveillance, Access Control, Time Attendance, Notice, DST, Duress Alarm, Web Server
Configuration: Linux system, TCP/IP, USB, SD Card, Camera, Multi-touch Screen, (optional: WIFI or GPRS)
-Fashion and nice design, installation easily.
-Multi-touch screen, it easy to add/edit card, password and photos, and
set personal verification mode and groups on screen.
-Send rolling message personalized to user on the screen during his verification
successfully.
-As professional intelligence access control system,we can set for particular user or a
certain group to open door at different time table in one day on touch screen directly,
which enables the open groups to be different in various time tables each day within a
week without PC software. Moreover, 3 continuous weeks’ setting for opening groups
can be distinguished completely, and 31 time tables can be available for each user or
group every day on terminal.
-As a powerful intelligence time attendance system, T8 TOUCH1 enables to select
“Function keys(IN, OUT, BREAK, RESUME, OVERTIME, DONE)” or “Shift” mode by
selecting on touch screen without PC software, if shift is preferred, three shifts can be
set in one day even on the terminal.
-DST is for winter and summer without changing by hand.
-Duress alarm is for calling the police stealthily when you have to enter into under
threat.
-Support uploading, downloading and playing MP3 music, photos and message, notice,
advertisement.
-Support wiegand external & internal Proximity / Mifare card reader and printers
externally by USB connection.
-Support to check the timing log by web server via internet.
-IP protocol and 100M high-speed network Embedded.
-1.3. million pixel camera embedded is for taking picture and security surveillance.
-The optional of WIFI and GPRS are for wireless network.
Technical Parameters:
Memory capacity: 60MB
Memory capacity extended: 2 GB
Amount: fingerprint (2KB), picture (6KB), log (32 bytes)
Period of data: keep data for 3 years when no current
LCD: multi-touch screen, 320*240 Pixels
Verification mode: fingerprint, card, password, fingerprint+card, card+password
FAR: <0. 00001%
FRR: <0. 01%
Response time: <0. 7 second
Communication: RS485, TCP/IP, U-Disk, Wiegand 26/34
Security surveillance camera: CMOS, 1.3 million pixels wide-angle lens
Languages: English, Spanish, English, Chinese and others customized
Access Control: embedded single access controller, supports 32 time zones per day
Save function: auto dormancy for saving
Internal functions: Battery, Card reader and Bell
External functions: connect to E-lock, Card reader and Printer
Size: 220*130*55(mm)
Weight: 2 kg, hang installation
Power supply: DC12V, 25W, 2A (AC 100V to 240 V, 50 to 60 Hz )
Warranty of period: 24 months.
Temperature and humidity: 0 - 45, 20%-80%
Optional: WIFI, GPRS, Printer, Battery
Applications: Office, Star-hotel, Villa, Bank, Government, Top grade community etc.
