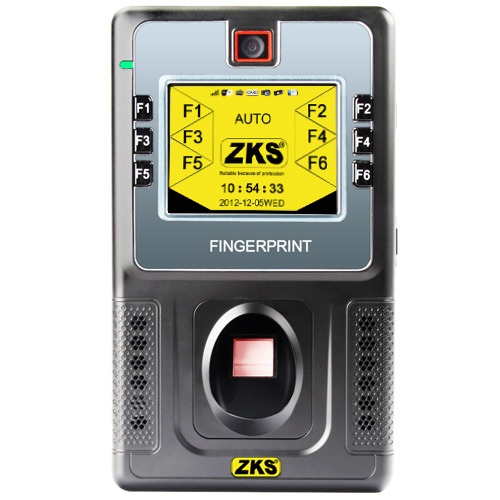

ZKS-T9-TOUCH fingerprint access control and time attendance
產品型號:ZKS-T9-TOUCH
產品分類:自動化設備/產業機械 / 檢測設備 / 檢測、量測設備及其另件
產品特色
T9 TOUCH is the latest advanced Smart Intelligence Fingerprint product of ZKS in 2011 that can be used in both Time Attendance and Access Control applications. High identification rate is less than one second; Linux operating system and ARM9 hardware platform; TFT 3.5 inches touch color LCD, showing personnel image, advertising and radio and so on; Inimitable and fancy design; Particular six kinds of shifts check on work accurate attendance advantageously. It is a kind of ideal product for high end consumption.
Features:
ZKS-T9 Touch – The Unique Smart Intelligence Fingerprint Time Recorder and Access Control Terminal: ARM9 2410, Linux system, TCP/IP, U-Disk, 3.5-inch Touch TFT Color LCD, Camera,WIFI,Web server
. New version identification speed obviously improved within 1 second.
. Professional and nice design, installation easily.
. Color Touch LCD display, 3.5 inches TFT high-definition graphical interface, a graphical interface can show bardian and color photographs of staff.
. Identification of a variety of modes to meet the individual needs of users: fingerprint, proximity card, password can be any combination of verification.
. Off-line function for inconvenient network and U-disk can upload and download files and images.
. Embedded IP protocol and 100M high-speed network.
. Have all kinds of voice prompt and read the number of staff.
. Many complementary functions: Notice, birthday wishes, give the correct time, advertising and so on.
. Storage capacity can be dynamically allocated with expanded storage of 1G.
. Advanced embedded Linux operating system, hardware platform of ARM9, round-the-clock work long hours reliable.
. Connect to external card readers by RS232/RS485/Weigand 26, readers can be formed to work simultaneously.
. Unique work of the six function keys to work: In, Out, Break, Resume, Overtime, Overtime over
. A variety of modes of communications: RJ45, U-Disk, WIFI, Web server and so on
產品規格
Technical Parameters:
Fingerprint templates: 5,000
Maximum capacity of register: one person can register 10 fingers.
Memory capacity: 60MB (can be extended to 1G)
Amount bytes of one fingerprint: 2KB
Period of data: Keep data for 3 years when no current
LCD: 3.5-inch TFT color, 320*240 Pixels
Verification mode: 1: N, 1:1
FAR: <0. 00001%
FRR: <0. 01%
Response time: <0. 7 second
Communication: RS232/ RS485, TCP/IP, U-Disk, Weigand 26 and WIFI
Video camera: 1. 3 million pixels, HDTV Color Camera
Show: Color pictures, Spanish, English and Chinese, time, ID number, Name etc.
Access Control: Supports 50 time zones, 5 groups and 10 unlock combinations
Time & Attendance mode: Fingerprint, card, password, set timetable in terminal
Save function: Automatically dormancy for saving
External function (access control): Embedded single access controller, connect to external E-lock, external ID card reader
Multimedia functions: Music, slide advertisement, notice etc.
Size: 220*130*55(mm)
Weight: 2 kg, hang installation
Power supply: DC12V, 25W, 2A (AC 100V to 240 V, 50 to 60 Hz )
Warranty of period: 24 months.
Temperature and humidity: 0 - 45, 20%-80%
Applications: Office, Star-hotel, Villa, Bank, Government, Top grade community etc.
