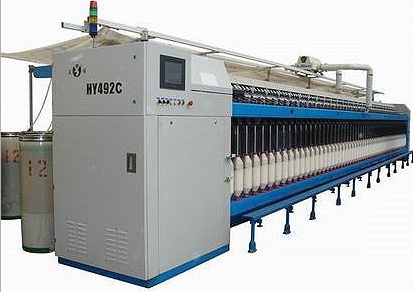

Roving Frame
產品型號：HY492C
產品特色
HY492C Roving Frame, developed by Hong Yuan, is controlled by computer and driven by invert. It is a new type machine featuring simple structure, high-level electromechanical integration, easy operation, high production efficiency, convenient maintenance, and more reliable property. It is suitable for carded and combed cotton sliver or blends, and is the best choice to make outstanding quality yarn.
產品規格
|
Model |
HY492C |
|
|
Spinnable fiber length (mm) |
Pure cotton and cotton chemical fiber 22~50 |
|
|
Count (tex) |
200~1250 |
|
|
Twist (T/10cm) |
1.8~8.0 |
|
|
Draft range |
4.3~13.28 |
|
|
Frame style |
Right, Left |
|
|
Flyer speed |
Max. mechanical speed |
1600 rpm |
|
Max. process speed |
1400 rpm |
|
|
Clearing device |
Top clearing |
Positive rotary clean tape, traveling blow & suction device |
|
Bottom clearing |
Positive rotary clean tape, suction |
|
|
Auto-stop device |
Auto-stop style |
Infrared photo-electrical stop motion |
|
Infrared photocell position |
Front: 2 sets for flyer safety stop motion |
|
|
Gauge (mm) |
220 |
|
|
Number of positions |
120 |
|
|
Total power (kW) |
22.5 |
|
|
Full roving bobbin size (mm) |
Ø150X406 |
|
