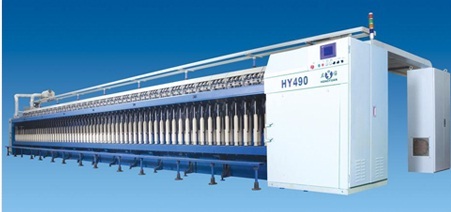

Roving Frame
產品型號：HY490
產品特色
Economic Solutions:
The maximum mechanical speed is 1600rpm; HY490 is developed under our long experience in the field of spinning, it can produce high quality yarn with competitive investment costs. It provides more choices for customer to select roving frame from HONGYUAN Company.
It can transform the old model into computer-control system with lowest investment.
產品規格
|
Model |
HY490 |
||||
|
Spindle gauge(mm) |
220 |
194 |
|||
|
Spindle number |
120 |
132 |
120 |
132 |
|
|
Package size(mm) |
Φ150×400 |
Φ135×400 |
|||
|
Spinnable fiber length (mm) |
22∼50 |
||||
|
Count(tex) |
200∼1250（0.8∼5Nm） |
||||
|
Twist range (T/10cm) |
1761∼7.442 |
||||
|
Draft range |
4.13∼13.28 |
||||
|
Frame style |
right or left |
||||
|
Draft system |
4 rollers double short apron |
||||
|
Bottom roller dia.(mm) |
Φ28.5×Φ28.5×Φ28.5×Φ28.5 |
||||
|
Flyer speed |
Mechanical speed up to |
1600 rpm |
|||
|
Process speed up to |
1200 rpm Pure cotton or chemical fiber 1200 rpm |
||||
|
Cleaning device |
Top cleaner |
Positive rotary clean tape, overhead blow & suction device is optional |
|||
|
Bottom cleaner |
Positive rotary clean tape + dust suction device |
||||
|
Auto-stop device |
Auto stop style |
Infrared photo-electrical stop motion |
|||
|
Infrared photocell position |
Front: 2 sets for flyer safety stop motion |
||||
|
Sliver can(mm) |
Φ400 Φ500 |
||||
|
Total power(kW) |
18.0 |
||||
