Direct inkjet printing system
產品型號：MÜPRINT MDP2 E
產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他紡織機械
產品特色
For elastic and non-elastic narrow fabrics.
Important features:
- Fast and cost-efficient production (short lead time from design creation to the finished print)
–Print-on-demand and just-in-time production possible
–Express deliveries possible, even in the case of personalised and individual applications
– Short changeover times – fast article changes
– Efficient sampling
– Contactless direct printing
– Printing of uneven narrow fabrics or fabrics with alternating thicknesses possible
– Any repeat lengths – endless printing
– Printing of variable data (e.g. serial numbers)
– Photo-realistic printing
– Textile feel of the narrow fabric is retained
– Excellent washing and abrasion fastness
– Process colours; only 4 basic colours (for the CMYK colour space) required – reduced ink storage costs
– High reproducibility (no setting of gauge-pins, colour decks or layer thickness as required e.g. with screen and flexo printing)
– Modular design: during servicing, units such as the printing module can be exchanged very quickly, thus reducing production losses to a minimum.
Concept

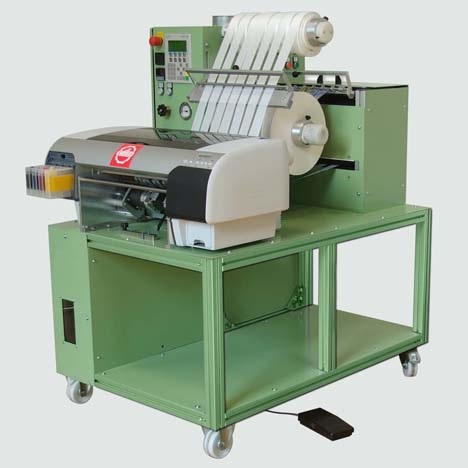

The MÜPRINT MDP2 and the MÜPRINT MDP2 E from Jakob Müller AG are designed for the contactless, direct inkjet printing of narrow fabrics.
The MÜPRINT MDP2 operates from roll to roll, the non-elastic narrow fabrics being wound on 3-inch cones.
The MÜPRINT MDP2 E prints both elastic and non-elastic narrow fabrics on a box-to-box
basis. The printed fabrics are ready for sale without finishing, or can be further processed by making-up machines.
產品規格
Technical Data
MÜPRINT MDP2 E
Operation method: From box-to-box using a kink removal device
Working width (max. printing width): 400 mm
Minimum tape width: 8 mm
Distance between two tapes: 10 mm
Maximum number of tapes: 10
Constraints: Narrow fabrics to be printed simultaneously must have the
same structure. The widths may vary.
Exhaust air: Waste air is produced during printing, which must be conducted out of the building.
Connected load: 3 x 400V +N + PE, 8.5kW, max. 15 Amp
Pneumatic connection: 6 bar
Air consumption: 1,5 l/min
Weight: 500 kg
Dimensions (LxWxH): 2830 x 1110 x 2190 mm
MÜPRINT MDP2
Operation method:
From roll to roll using 3-inch cores
Working width (max. printing width): 400 mm
Minimum tape width: 15 mm
Distance between two tapes: 10 mm
Maximum number of tapes: 16
Constraints: Narrow fabrics to be printed simultaneously must have the
same structure. The widths may vary.
Exhaust air: Waste air is produced during printing, which must be conducted out of the building.
Connected load: 3 kW
Weight: 300 kg
Dimensions (LxWxH):
1206 x 900 x 1412 mm
