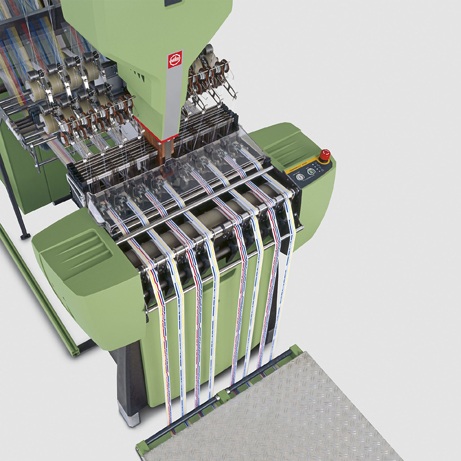

Narrow fabric needle loom



產品型號：NH2 53

產品分類：紡織染整成衣暨縫製機械 / 紡織染整機械 / 其他紡織機械



立即線上詢問





產品特色



Electronically controlled narrow fabric needle loom for light to medium-weight elastic and non-elastic narrow fabrics with unlimited repeat lengths.

Important features:
– Unlimited repeat lengths due to electronic frame control
– Very quick changes of pattern possible, no requirement for the preparation and use of pattern chains or pattern drums with cam discs
– Low energy consumption (less than 1 kW)
– Minimal maintenance requirement
– Low spare part requirement due to limited number of mechanical components
– Very high levels of user-friendliness
– Positive-controlled electronic thread transport with infinitely adjustable setting
– Electronically controlled fabric take-off
– Electronically controlled main drive for infinitely adjustable weaving speeds
– Electronically controlled creep speed
– Precision fabric take-off with non-slip draught and pressure roller coverings for weave protection
– Minimal lubrication oil consumption
– Optional execution for 1 needle or 2 needle Zsytem for H-M-T
- Compact design

Concept
The new Müller NH2 53 (various patents registered) employs components that have been in successful use for many years in tandem with innovations, which are set to play a pioneering role in textile machinery design.
As a result of a new type of drive system, the machine has a very low energy consumption. The electronic control of the frames, powered by linear motors, permits unlimited repeat lengths. Both the weft and auxiliary thread transports are electronically
controlled and infinitely adjustable. The fabric take-off and the main motor also utilise this drive concept.
