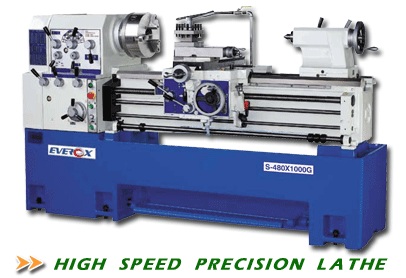

High Speed Precision Lathe
產品型號:S-430/S480/S530/L560/L660/L760/H840
產品特色
Selective bed width:
S series: 300mm
L series: 400mm
H series: 450mm
Varied spindle bore diameters:
S series: Φ 58mm / Φ 78mm ,
L series: Φ 82mm / Φ 115mm ,
H series: Φ 153mm / Φ 230mm , Φ 350mm (Opt.)
Varied spindle bore diameters.
Thermal treated and precision ground alloy gears.
Universal gearbox for both imperial and metric threading-conversion table also attached
Track of cross slide and bed are well lubricated with lubrication pump (manual).
Overload device to ensure safety when operating.
Wear-resistant phosphor bronze lead screw nuts.
Thermal treated meehanite cast bed.
產品規格
項目 / 機型 |
單位
|
S430 |
S480
|
S530
|
L560
|
L660
|
L760 |
H840
|
作業能力 | ||||||||
床面旋徑 |
mm
|
430
|
470
|
520
|
560
|
660
|
760
|
840
|
滑台蓋旋徑 |
mm
|
240 |
280
|
330
|
340
|
440
|
540
|
570
|
凹口旋徑 |
mm
|
650 |
690
|
740
|
788
|
890
|
990
|
1020 (特殊)
|
兩心間距離 |
mm
|
760 / |
760 / 1000 / |
1000 /
1500 / 2000 |
1000 / 1500 / 2000 / 2500 / 3000 / 4000
|
1600 / 2100 / 3100 /
4100 / 5100 / 6100 |
||
床面寬度 |
mm
|
300 |
400
|
450
|
||||
主軸箱 | ||||||||
主軸孔徑 |
mm
|
58 / 78 (特殊)
|
85 / 115 (特殊)
|
115
|
153 / 230 / 305
|
|||
主軸鼻端 |
|
ASA-D1 - 6 / D1 - 8 (特殊)
|
ASA-D1 - 8 / D1 - 11(特殊)
|
ASA-D1 - 11
|
A2~11 / A2-15 / A2-20
|
|||
主軸轉速 |
rpm
|
20~2000 (12 段)
|
15~1500 (12 段)
10~1000 (12 段, 特殊) |
10~1000
(12 段) |
176~800 / 108~450 / 87~350
53~175 / 31~107 / 26~86 10~52 / 6~30 / 5~25 |
|||
床鞍 | ||||||||
導螺桿直徑及牙數 |
mm
|
Φ 35 x 4 T.P.I 或 6 |
Φ 38 x 4 T.P.I 或 6
|
2 T.P.I 或 12
|
||||
縱向進刀量範圍 |
mm
|
0.05~0.82
|
0.05~0.82
|
0.05~0.70
|
||||
橫向進刀量範圍 |
mm
|
0.02~0.4
|
0.02~0.4
|
0.025~0.35
|
||||
公制螺桿車製範圍 |
mm
|
P0.5~P7
|
P0.5~14
|
0.08~14
(65 種) |
||||
英制螺桿車製範圍 |
T.P.I
|
4~56
|
2~56
|
2~28(36種)
|
||||
橫送台移動範圍 |
mm
|
245
|
275
|
375
|
450
|
|||
複式刀座移動範圍 |
mm
|
125
|
200
|
250
|
||||
尾座 | ||||||||
尾座心軸移動範圍 |
mm
|
150
|
165
|
220
|
||||
尾座心軸直徑 |
mm
|
Φ 58
|
Φ 68
|
Φ 85
|
Φ 105
|
|||
尾座心軸錐度 |
|
MT#4
|
MT#5
|
MT#5
|
||||
馬達 |
||||||||
冷卻泵浦 |
HP
|
1/8 HP (0.1 kw)
|
1/8 HP (0.1 kw)
|
1/8 HP
|
||||
主軸馬達 |
HP
|
5 HP (3.75 kw) / 7.5 HP (5.625 kw, 特殊) |
10 HP (7.5 kw)
10 HP (7.5 kw, 6P, 特殊) |
10 HP (7.5 kw,6P)
15 HP (11 kw, 6P, 特殊) |
15 HP / 20 HP (特殊)
|
