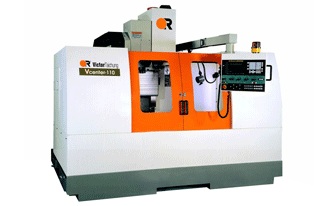

立式綜合加工機
產品型號：Vcenter-110/130
產品分類：工具機產業機械 / 綜合加工機 / 立式綜合加工機
產品特色
1. 最佳主軸剛性
2. 24刀刀庫
3. 優異的鑄件設計
4. 主軸循環油冷卻系統 (選配)
5. 自動強制潤滑系統
6. Y軸採三線軌設計
7. 長行程Y軸與前置式Y軸驅動馬達
8. 底板沖屑
產品規格
| ITEM | Unit | Vcenter-110 | Vcenter-130 | |
|---|---|---|---|---|
| Travel | X axis travel | mm | 1100 | 1300 |
| Y axis travel | mm | 600 | 600 | |
| Z axis travel | mm | 560 | 610 | |
| Distance | Spindle center to column | mm | 600 | 600 |
| Spindle nose to table surface | mm | 180 ~ 740 | 155 ~ 765 | |
| Table | Table work area | mm | 1400 x 550 | 1400 x 550 |
| Dimension of T-slot | mm | 5 x 18 x 100 | 5 x 18 x 100 | |
| Max. table load | kg | 800 | 800 | |
| Spindle | Spindle taper | BT-40 | BT-40 | |
| Spindle motor-cont / 30 min | kW(AC) | 7.5 / 9.0 | 7.5 / 9.0 | |
| Spindle speed | rpm | 6000 | 6000 | |
| Feed rate | Rapid feed rate-X/Y/Z | m/min | 24 / 24 / 18 | 24 / 24 / 18 |
| Axis feed motor-X/Y/Z | kW | 3.0/3.0/3.0 | 3.0/3.0/3.0 | |
| Cutting feedrate by table | m/min | 10 | 10 | |
| X/Y ballscrew (dia. x pitch) | mm | 40 x P12 | 40 x P12 | |
| Z ballscrew | mm | 40 x P10 | 40 x P10 | |
| Tools | Max. tool length | mm | 300 | 300 |
| Max. tool weight | kg | 8 | 8 | |
| Magazine capacity | 24 (disk) | 24 (disk) | ||
| Max. tool diameter (without adjacent tools) |
mm | 80 (125) | 80 (125) | |
| Tool exchanging time | sec. | 1.5(T-T), 6.4(C-C) | 1.5(T-T), 6.8(C-C) | |
| Pull stud angle | deg. | 90 (opt. 45) | 90 (opt. 45) | |
| Tool selection method | Random | Random | ||
| Machine | Power requirement | kVA | 23 | 23 |
| Min./Max. air pressure | kg/cm2 | 5.5 / 6.5 | 5.5 / 6.5 | |
| Coolant tank capacity | L | 350 (opt. 2 x 240) | 350 (opt. 2 x 250) | |
| Std. NC controller | FANUC 0i-M | FANUC 0i-M | ||
| Floor space requirement | mm | 3200 x 2625 | 3200 x 2625 | |
| Max. Machine height | mm | 2895 | 2920 | |
| Net weight | kg | 7500 | 7800 |
Standard accessories:
- Fully enclosed splash guarding
(except Vcenter-145) - Hand tools and tool box
- T nuts for table slot
- Coolant flush on bottom guarding
(except Vcenter-145) - Built-in work light
- Spindle oil cooler
(only for Vcenter-110/130/145) - Auto power off system
- Leveling blocks
- Program end light
- Rigid tapping
- Alarm lamp
- Remote MPG
- Air conditioner for electrical cabinet
Optional accessories:
- Chip conveyor with cart
(2 chip conveyors for Vcenter-145)
(Please specify when machining Aluminum or Cast Iron) - Spindle oil cooler
(for Vcenter-55/70/85/102) - 2-step gearbox
(max. spindle speed 6000 rpm) - High speed spindle
(10000,12000,14000,15000, 20000 rpm) - High powered spindle motor
- Oil hole coolant
- Coolant through spindle
- Air blow system
- Linear scale feedback
- Auto tool length measurement
- Electrical counterbalance
- Workpiece measurement
- 4th axis rotary table
- Higher column with spacer
- Table shower system
- Fully enclosed splash guarding for Vcenter-145
- BT-50 tooling with gearbox
(for Vcenter-85/102/110/130)
