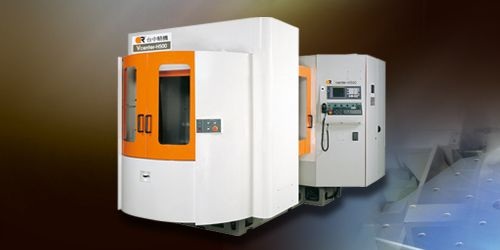

臥式綜合加工機
產品型號：Vcenter-H500/H500HS
產品分類：工具機產業機械 / 綜合加工機 / 臥式綜合加工機
產品特色
1. 內藏式主軸
2. 耐用的刀具交換系統
3. 高剛性機械結構
4. 對稱結構設計降低溫度
5. 快速的工作台交換機構
6. 高剛性與高阻尼線軌
產品規格
| ITEM | Unit |
|
Vcenter-H500 | |
|---|---|---|---|---|
| Capacity | X axis travel | mm | 720 | |
| Y axis travel | mm | 650 | ||
| Z axis travel | mm | 720 | ||
| Distance | Spindle nose to table center | mm | 140-800 | |
| Spindle center to table surface | mm | 50-700 | ||
| Max. part dimension (Dia. x H) | mm | Ø720 x 750 | ||
| Working Table | Table work area | mm | 500 x 500 | |
| Max. table pallet | kg | 800 | ||
| Surface configuration | M16 x P2.0 | |||
| Min. angle of rotation | deg. |
1 (Opt. 0.001 for CNC table) |
||
| Pallet exchange time | sec | 6.5 (P-P), 11 (C-C) | ||
| Pallet exchange type | rotary | |||
| Time to index 90o | sec |
3 (Opt. 1.6 for CNC table) |
||
| Time to index 180o | sec |
5 (Opt. 2.96 for CNC table) |
||
| Spindle | Spindle taper | BBT-40 | BT-50 | |
| Spindle motor- cont/30 min | kW |
18.5 / 22 (high winding) |
11 / 15 (Opt. 15 / 18.5 for 10000rpm spindle) |
|
| Spindle speed | rpm | 14000 | 6000 (Opt. 10000) | |
| Spindle bearing diameter | mm | 70 | 110 | |
| Axis feed | Rapid feed rate - X/Y/Z | m/min | 30 / 30 / 24 | 24 / 24 / 24 |
| Axis feed motor - X/Y/Z | kW | 4 / 7 / 4 | ||
| Cutting feed rate by table | mm/min | 10000 | ||
| B axis feed motor | kW | 1.6 (Opt. 4 for CNC table) | ||
| X/Y/Z ball screw (dia. x pitch) | mm | Ø45 x 20 | Ø45 x 12 | |
| Slideway width - X/Y/Z | NRS 55 / 55 / 55 | |||
| ATC & Tools | Tool magazine capacity |
40 (Opt. 60, 90) Chain type |
||
| Tool selection | Fixed tool pot number | |||
|
Max. tool diameter (without Adjacent tool) |
mm | 100 (200) | 120 (240) | |
| Max tool length | mm | 400 | 400 | |
| Max. tool weight | kg | 7 | 20 | |
| Tool exchange time | sec |
4.1 (T-T) 8.5 (C-C) |
6.8 (T-T) 10.6 (C-C) |
|
| Pull stud angle | deg. | 90 | 60 | |
| Machine | Standard CNC controller | 0i-MD (10.4") | ||
| Power requirement | KVA | 50 (60 with CTS) | 40 (50 with CTS) | |
| Air pressure requirement | kg/cm2 | 5.5~6.5 | ||
| Coolant tank | L. | 400 | 400 | |
| Chip disposal (with chip conveyor) | Front and left | |||
| Machine height | mm | 2937 | ||
| Floor space requirement | mm | 4393 x 5393 | ||
| Machine weight | kg | 12500 | 12500 | |
※Specifications are subject to change without notice for design improvement.
Standard accessories:
- 1˚ indexing table
- Spindle oil cooler
- Coolant tank
- Fully enclosed splash guard
- Manual pulse generator (remote type)
- Hand tools and tool box
- Scroll type chip removers (for Vcenter-H500/H500HS)
- Built-in work lamp
- Programming end light
- Leveling block
- Automatic pallet changer
- Spindle load meter
- Oil skimmer
- Rigid tapping
- Air conditioner for electrical
- cabinet
- Chip conveyer with cart
- Handy coolant gun
Optional accessories:
- Table shower system
- Coolant Through Spindle (CTS)
- CNC table with 0.001˚
- continuous indexing
- 60, 90, 120 tool magazine
- T-slot pallet
- Tool length measurement
- Workpiece measurement
- Linear encoder feedback
- Multi-face table (Tombstone fixture)
- Air blow system
- HSK-A63 tooling (Vcenter-H400/H500HS)
- 15000/20000 rpm (Vcenter-H500HS)
- Fanuc 31i/18i/21i controls
