產品規格

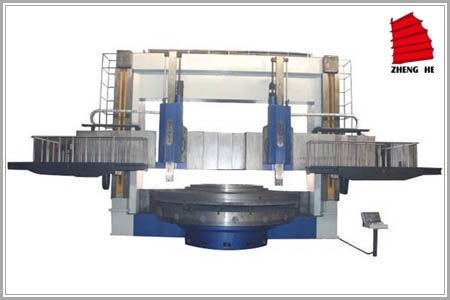

■ The most advanced production technology of vertical lathe, modularization design and analysis of infinite elements are adopted to integrate machine, electricity and hydraulics the advanced technology, which represents high-precision exquisite cutting.

■ Siemens 802DSL or Siemens 802C CNC system which owns 100% full manual switch and operation function, that means no programming is needed even for the common operator. Manual operation is convenient and practical.

■ Two-step machinery variable speed+ ultra-large torque DC motor stepless speed control to realize turning with constant line rate.

■ Excellent casting (HT300) is handled by heat aging.

■ The guide on the beam is embedded with chromium-masurium-manganese guide plate.

■ The left tool holder adopts the common type while the right one utilizes CNC system; both of the two tool holders can all be selected as CNC mode.

■ The guide of working platform adopts constant current oil supply with constant current motor with the feature of stable precision; the hydraulic oil utilizes refrigerator for constant-temperature cooling and reducing the variant quantity of the working platform.

■ Different lubrication parts adopt automatic lubrication pump for automatic timing and quantitative oil supply.

■ High-precision ball screw adopts imported bearing (Germany INA) for supporting.

■JB/T9934.1-1999 precision inspection of CNC vertical lathe is performed

JB/T9934.2-1999 technical specification of CNCvertical lathe

■Perfect after-sales service system, one years quality service.

■Lots of imported parts (electrical, servo motor, servo drive, hydraulic parts, bearings, screw, planetary reducer, etc.), reliable quality assurance.

■Gear box adopts high-accuracy grinding gears.

■With beams stainless steel protective and walking board etc.
