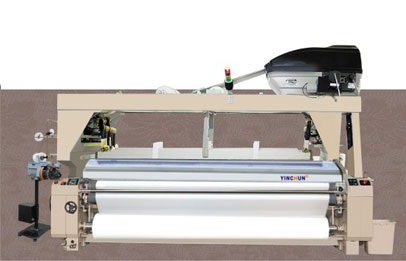

high speed water jet loom
產品型號:SJW622
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 無梭織機
產品特色
water jet loom is designed to weave man-made fiber fabric at high speed.
Pls check main specs of our machine
Brake--- Electronic type
Warp line height--- 940 mm
Frame Structure--- Box type
Weft Accumulation--- Electronic weft accumulators with pick at will device
Nozzle & needle 2 pcs. Each – 60 & 20 / 45 / & 10 / 75 & 40
-
-
Beating Crank type ---multiple slay sword type
Take up capacity ( Maximum )--- 600 mm
Wef density 20 – 140 picks per inch
Beam flanges diameter (mm)--- 800 mm
L-
Mechanical speed / Working speed 800/700 RPM for reed space 150-190cms
500/450 RPM for reed space 210-280cms
Weft feeler Infra red (I/R) type
Lubrication Oil / Grease type
