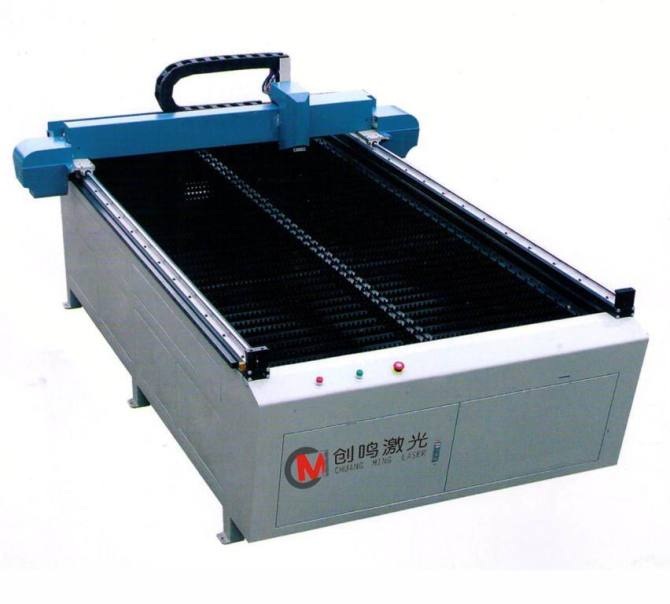

CNC Plasma Cutting Machine
產品型號：CM-P1225/1325/1425
產品分類：工具機產業機械 / 焊接切割機械 / 變頻式CO/MAG自動焊接機
產品特色
Key Components optional:
- Linear Rails: Square orbit , brand of Taiwan HIWIN
- Motor: Stepper or servo optional
- Power Supply: U.S.A Cutmaster Powermax 100 A optional
- Controlling Software: Original UncanNest V9 (English Version)
- Designing Software: Type3/Coreldraw/Auto CAD/CAM
- Height Control System: Automatic
- Controlling System: Beijing Tianhong system
- Controlling Box: Separate
- Reduction box: Taiwan servo
Applicable Material :
Metal Material: Low-Carbon steel/ Stainless Steel/ Aluminum/ Gold/Silver /Copper, etc.
產品規格
|
Model |
CM-P1225 |
|
Work Area (mm) |
1200 x2500 |
|
Current (A) |
80 |
|
Machine Frame |
Aluminum Or Steel Structure Optional |
|
X, Y Structure |
Rack and Pinion transmission, Linear guilder from Tai wan |
|
Controlling System |
Big 17'' touch sceen Computer with XP System |
|
Cutting Speed |
1-10m/min (depends on the material) |
|
Idle running Speed |
0-50m/min |
|
Cutting Accuracy |
±0.1mm |
|
Power Supply (V) |
110/220/380/440 Optional |
|
Drive Motors |
Panasonic Servo Motor or stepper |
|
Graphic Formats |
BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF |
|
Dimensions (m) |
4.2 x2.1 x1.5 |
|
Weight (kg) |
1300 |
