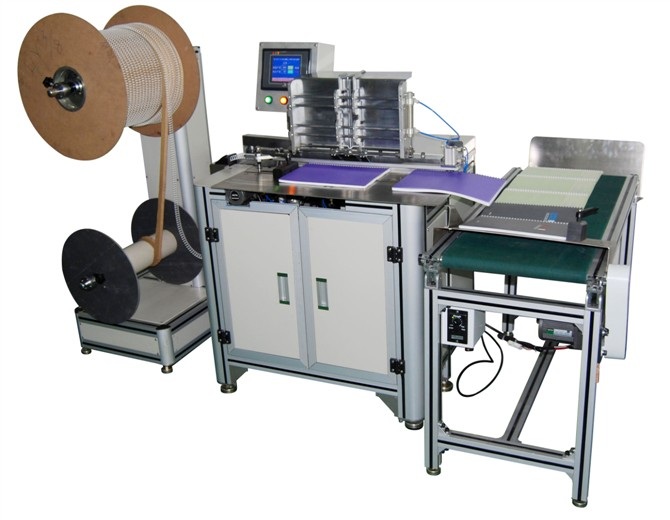

Bookbind machine
產品型號：DWC-520A
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 包裝設計
產品特色
This binding machine is used to making notebook,calendar,book ect
Advantages:
1.Can bind up to 800-2000 pcs/hour
2.Double wire diameters1/4''-7/8''.pitch 1:2,1:3
3.Book width 70-520mm
4.automatic hanger attachment
5.Multi function
6.auto error reminder
7.multi language interface design accorrding to customer requirested.
8.automatic trasmission notebook,calendar, and easily operation
9.the actuating element of the machine to switch to a new slide type to ensure long life and stability.
MODEL:DWC-520A
Feeding Mode:Manual
Handing of Double Wire Automatic cutting,insertion&closing
Wire Specifications Diameter:1/4§-7/8§ Pitch:1:2§,1:3§
Max Paper Widthㄗmmㄘ:520mm
Max Binding Widthㄗmmㄘ:507mm
Min paper Widthㄗmmㄘ:75mm
Working Speedㄗpcs/hㄘ:1000-2000pcs/hour
Size of WorktableㄗW*Dㄘ: 660X300mm
Power Supply:220V/1ph/50Hz
Air Compressorㄗnot includedㄘ:1.5kw
Air PressureㄗPaㄘ:6-8pa
Machine DimensionsㄗW*D*Hㄘ:1030X770X1230mm
machine work need space:1800*760*1230mm
Net Weight:510kg
Dimensions of Pay-off UnitㄗW*D*Hㄘ:490X760X1230mm
Net Weight of Pay-off Unit:65kg
產品規格
|
MODEL |
DWC-520A |
|
Feeding Mode |
Manual |
|
Handing of Double Wire |
Automatic cutting,insertion&closing |
|
Wire Specifications |
Diameter:1/4”-7/8” Pitch:1:2”,1:3” |
|
Max Paper Widthㄗmmㄘ |
520mm |
|
Max Binding Widthㄗmmㄘ |
507mm |
|
Min paper Widthㄗmmㄘ |
75mm |
|
Working Speedㄗpcs/hㄘ |
1000-2000pcs/hour |
|
Size of WorktableㄗW*Dㄘ |
660X300mm |
|
Power Supply |
220V/1ph/50Hz |
|
Air Compressorㄗnot includedㄘ |
1.5kw |
|
Air PressureㄗPaㄘ |
6-8pa |
|
Machine DimensionsㄗW*D*Hㄘ |
1030X770X1230mm machine work need space:1800*760*1230mm |
|
Net Weight |
510kg |
|
Dimensions of Pay-off UnitㄗW*D*Hㄘ |
490X760X1230mm |
|
Net Weight of Pay-off Unit |
65kg |
