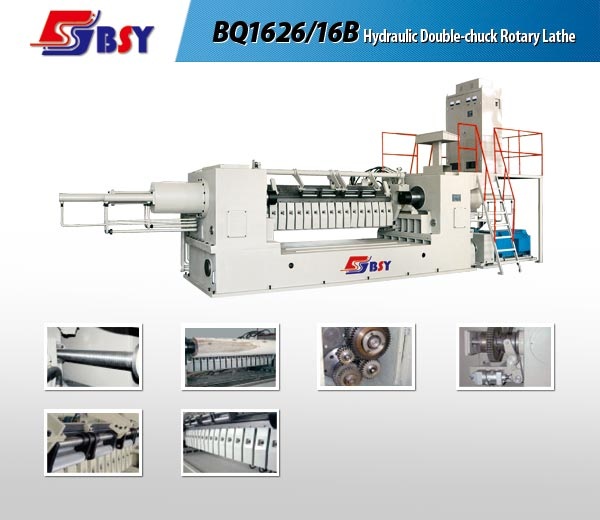

Double Telescopic Veneer Peeling Lathe
產品型號：BQ1626/13B,BQ1626/16B,BQ1613/13A
產品分類：木工產業機械 / 薄片/合板製造 / 合板二次加工整廠設備
產品特色
Model BQ1626/13B BQ1626/16B BQ1613/13A
Working diameter (mm) Φ 170- Φ1300 Φ 170- Φ1600 Φ 170- Φ1300
Working length (mm) 1900-2700 1900-2700 900-1450
Veneer thickness (mm) 0.35-4.2 0.35-4.2 0.35-4.2
Chuck diameter (mm) min. Φ110 max. Φ200 min. Φ110 max. Φ200 min. Φ110 max. Φ200
Chuck speed (mm) 0-160 0-200 0-160
Main motor power (kw) 98 Z4-315-11 118 Z4-250-31 67
Main motor speed (rpm) 360-1200 450-1600 540-200
Fan motor power(kw) 5.5 5.5 3
Tool carriage motor (kw) Y132M-6 5.5 Y132M-6 5.5 Y132M-6 5.5
Tool carriage speed (m/min) 1.8 1.8 1.8
Tool carriage clearance angle motor (kw) Y90L-6 1.1 Y90L-6 1.1 Y90L-6 1.1
High pressure pump motor (kw) Y112M-4 4 Y112M-4 4 Y112M-4 4
Big discharge capacity pump motor (kw) Y160M-6 7.5 Y160M-6 7.5 Y160M-6 7.5
Max. working pressure of hydraulic(Mpa) 6 6 6
Total motor power(kw) 125.5 145.5 88.1
Overall dimensions (mm) 10500×2480×4200 10500×2600X4200 10500×2480X300
Weight (kg) 34000 36000 30000
