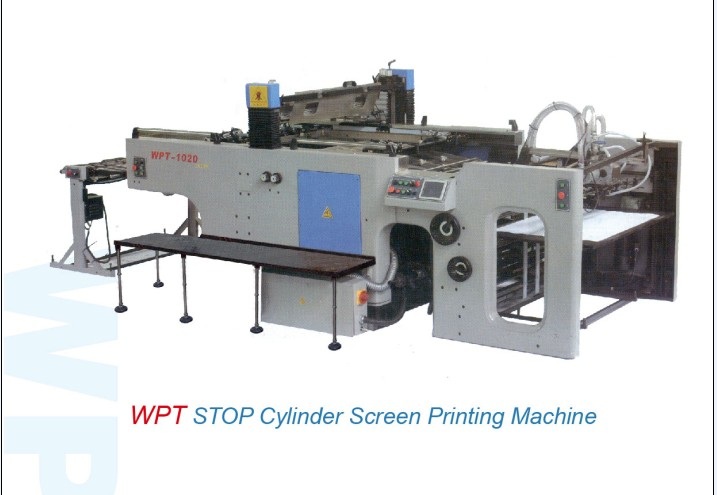

WPT720 stop cylinder screen printing machine
產品型號：WPT 720/ 1020
產品分類：包裝印刷暨食品及製藥機械 / 印刷機械 / 網版印刷機
產品特色
Stop cylinder drive principle guarantees the most exact repetition in register. No bouncing back or pushing-in of sheets occurs. The conditions for sheet alignment remain unchanged over the full speed range of the press. Accuracy is as good as ± 0,03 mm (± 0,0012”) – from 400 to 3.000 impressions per hour.
Application:
WPT series stop cylinder screen printing machine is a high speed and high precision machine, able to print various materials, such as decal (ceramic, painted product, glass), paper (tobacco, wine box, cosmetic box, and gift box), PCB, faceplate label and flexible plastic. It can be used with Sanyin Series screen drying machine, UV dryer, UV&IR dryer and automatic stacker to form the full automatic screen printing line.
產品規格
|
Model |
WPT720 |
WPT1020 |
|
Max sheet size (mm) |
720*520 |
1020*740 |
|
Min sheet size (mm) |
350*270 |
560*350 |
|
Max printing size (mm) |
720*500 |
1020*720 |
|
Paper thickness (gsm) |
120 to 250 |
90 to 350 |
|
Frame size (mm) |
880*880 |
1280*1140 |
|
Max speed (mm/s) |
3300 |
3000 |
|
Total power (kw) |
8.2 |
15 |
|
Weight (kg) |
3500 |
5500 |
|
Dimension LWH (mm) |
3700*1900*1270 |
4570*2720*1430 |
