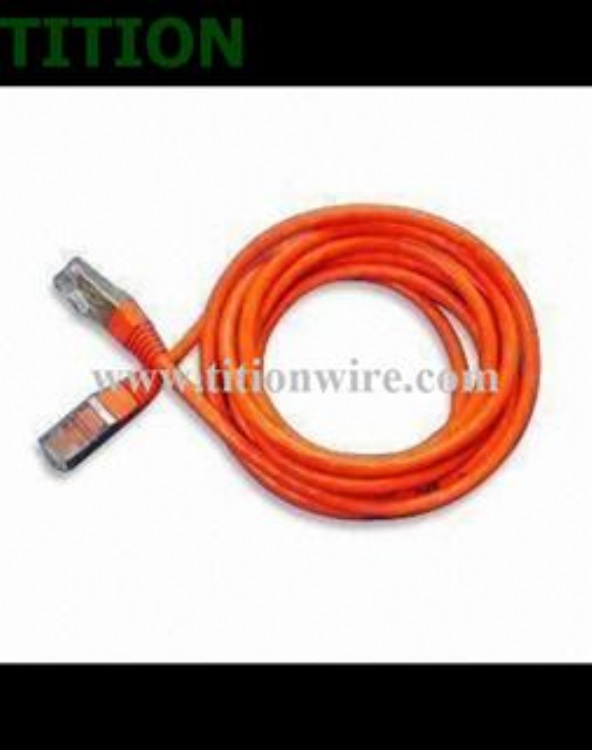

CAT 5e Network Cable
產品型號：UTP CAT 5e
產品分類：紡織染整成衣暨縫製機械 / 二手機械 / 中古機械
產品特色
Quick Details
Place of Origin: Guangdong China (Mainland) Brand Name: AMPLIXUN Model Number: UTP CAT 5e
Type: Cat 5e Number of Conductors: 8 Color: As you wished
Conductors: Copper Shield: utp/ftp/stp/sftp Jacket: PVC
Insulation: PE Length: Can be negotiated Weight: 1m length about 0.066kg
Application: Telecommunication Certification: CE/RoHS Packing: Standard exporting carton
Packaging & Delivery
Packaging Detail: box or pull out box or pallet,305m/box or as buyer's requirement can be negotiated
Delivery Detail: 10days,can be negotiated
產品規格
wireless rj45 adapter/pvc insulation cat5e network cable
1.OEM
2.CE&RoHS
3.BC,CU,CCA,CCAM,CCS
4.Cat5,Cat5e,Cat6,
wireless rj45 adapter/pvc insulation cat5e network cable
1.4 x 2 x 0.50mm CCAM conductor + OD 0.924mm PE insulation + OD 5.2mm PVC sheath
2.Number of pairs: 4 pairs
3.AWG: 24
4.Conductor diameter: 0.50±0.003mm
5.Raw material of the conductor: CCAM
6.Insulation materials: HDPE and FRPE
7.Insulation diameter: 0.924±0.005mm
8.Average thickness: 0.212mm
9.Minimum point thickness: 0.2095mm
10.Jacket rid cord: optional
11.Sheath material: PVC or LSOH
12.Nominal diameter: 5.2±0.2mm
13.Average thickness: 0.50mm
14.Minimum point thickness: 0.40mm
15.Operating temperature range: -20°C to80°C
16.Minimum bend radius (install): 8OD
17.Flame test: CMX, CM, CMG, IEC60332-1 and CMR
18.Reference standard: TIA/EIA568B, IEC/ISO11801
