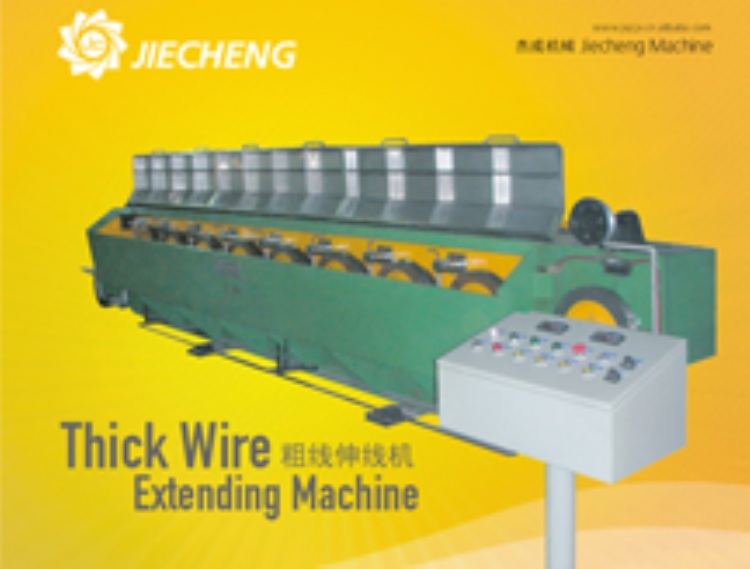

copper thick wire extending machine
產品型號：JC
產品分類：包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 全自動吸管包裝機
產品特色
Quick Details
Place of Origin: Zhejiang China (Mainland) Brand Name: Jiecheng pull body pass: 9
original: zhejiang province ,china Diameter of drawing drum: 400mm inlet wire and outlet wire: 8mm and 3mm
Packaging & Delivery
Packaging Detail: standard export packing
Delivery Detail: 60days
產品規格
Specifications
1.Diameter of inlet and outlet:8mm and 3mm
2.Voltage used:380V
3.Power of the main unit:250kw DC motor,160kw DC motor
This unit is to absorb advanced high-speed copper wire machine advantages, Pull with drum immersed copper fluid drawn, Drum diameter, straight pull, Sliding wire drawing
Main technical parameters
1. Inlet diameter(max): Φ8mm
2. Outlet diameter(min): Φ3mm
3. Pull body pass:9
4. Diameter of drawing drum: Φ400mm
5. Diameter of off-line machine drum discharge line : Φ800mm
6. The Road the average elongation:1.27
7. Lengthening coefficient: 1.22~1.33
8. Tensile speed: 7 ~ 10m / s
9. Big drawing machine main motor: 185KW(1000r/min)
10. winding machine motor:15kw
11. Speed mode: Frequency control of motor (hosts) + Frequency control of motor (winding )
