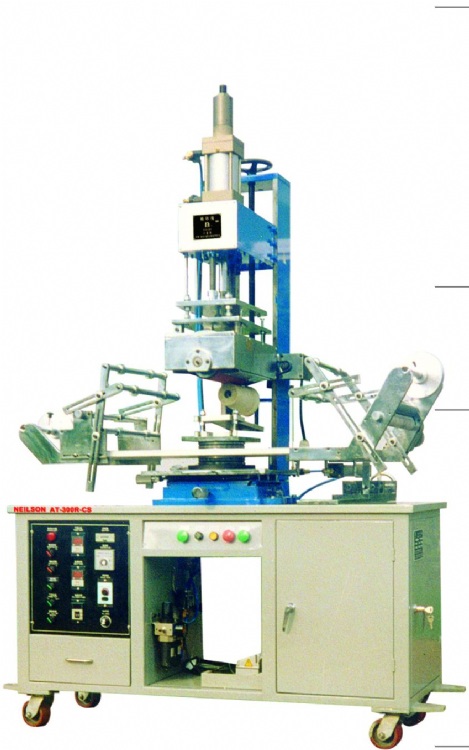

轉印機
產品型號:AT-300RCS
產品分類:包裝印刷暨食品及製藥機械 / 印刷機械 / 塑膠類印刷機
產品特色
Features
1. This machine is designed to printing on the small size conic shape items. such as conic shape cups.
2. Pneumatic type machine with the maximum pressure 1,500kgs
3. This machine could adjust the degree of the rotation base on the taper of the printing object
4. This machine could adjust the stroke base on the external diameter of the printing object.
5. This machine equipped with the double section cylinder, which could provide the steady printing.
6. PC control panel
產品規格
Size of roller:φ100*300M/M
Power Source and heating:220V,2700W
Regulation of Temperature:0-400℃
Maximum pressure:1,500KGS
Weight:500KGS
Time Control:0-9.9S
Roller Leaf Feeding Device:0.5-170M/M
Diameter of cylinder :φ80M/M
Maximum Gap:300M/M
Dimensions of machine:L1700*W800*H2100M/M
