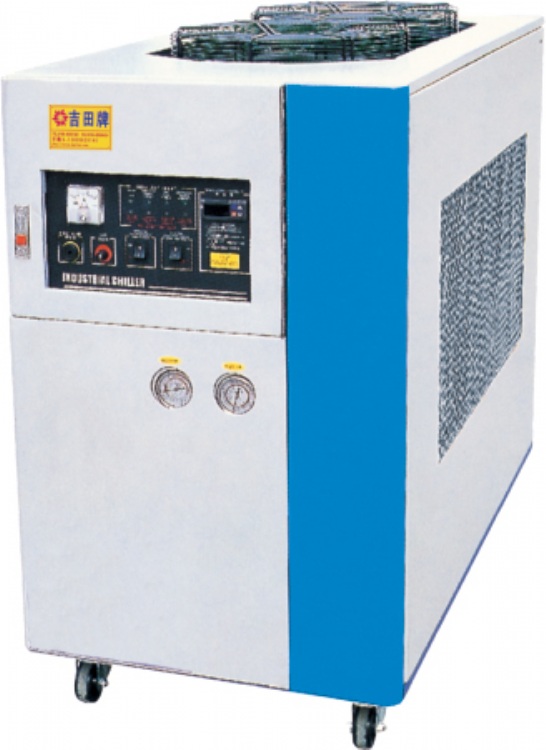

產品規格



Key Specifications/Special Features:

Micro computer control on full types of functions
Stainless steel open water tank
Precise electrical temperature controller can render control on the water temperature between 3 to 5°C
Full types of equipments and devices for safety protection and system abnormal indication
Screen displays cold water outlet, inlet and set temperature
Temperature of cold water outlet and inlet can be changed and adjusted (20HP)
Refrigerating capacity:
15,000kcal/hours
59,550biu/hours
Refrigerant: R22
Compressor input power: 3.7kW
Compressor rate power: 5HP
Chill water flow rate: 58L/minute
Pipe diameter: 19mm or 3/4 inches
Voltage: 380 to 415V/3-phase (50Hz)
Water tank capacity: 65L
Pump power: 0.37kW, 1/2HP
Pump flow rate: 80L/minute
Current: 10.4A
Foam tape and rubber casing
Dimension: 115 x 50 x 110cm
Net weight: 198kg
Payment Details:

Payment Terms:
T/T
Minimum Order:
1 to 99 Unit
Delivery Details:

FOB Port:
Shenzhen
Lead Time:
15 - 30 days
