• DMSQ-1600C(CE)Automatic Grinder Automatic knife grinding machine



放大圖片

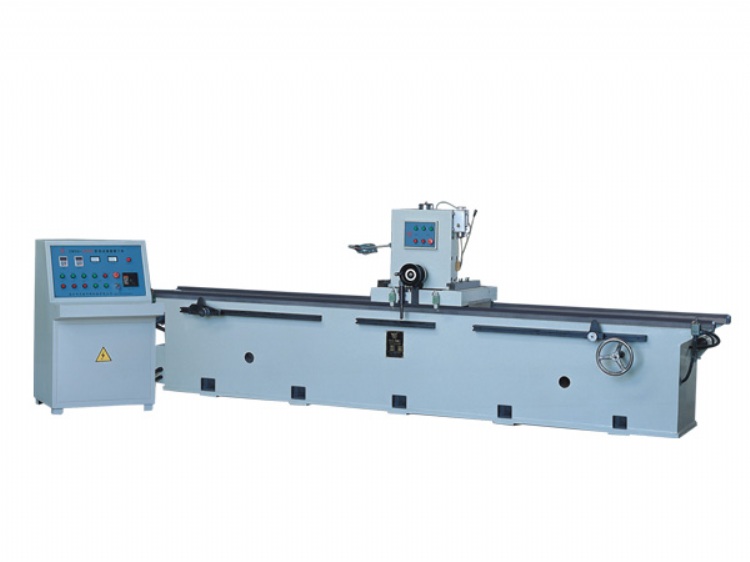

DMSQ-1600C(CE)Automatic Grinder Automatic knife grinding machine

產品型號：DMSQ-1600C

產品分類：包裝印刷暨食品及製藥機械 / 印刷機械 / 其他印刷機械

立即線上詢問

產品特色

Automatic Grinder Model DMSQ-C

Automatic Grinder Model DMSQ-C, it is our company set on the basis of the German Grinding technology, developed from the fourth generation of fully automatic adjustable speed knife grinder.

Automatic Grinder Model DMSQ-C made of high quality carbon structural steel, processed from the gantry structure of the fuselage; grinding Transmission rolling linear guides for the transmission; the middle of the cooling water ejected from the grinding wheel (water-cooled motor patented technology), the cooling Better; grinding head movement and wheel speed are imported inverter control, the speed is adjustable within the specified scope.

Automatic Grinder Model DMSQ-C feed grinding wheel, grinding head with paste-type cylindrical grinding wheel, grinding wheel life increased to 1 / 3, which greatly reduces the cost of grinding and grinding back and forth adjustable.

Automatic Grinder Model DMSQ-C’s type of sharpener for sharpening the blade to face all kinds of lath (such as: joint line knife, toilet paper scraper, three-side trimmer, cutter, wood chipper, cutting blades used in such); is Printing, paper, wood, plastic leather, creating an ideal board grinding equipment and other industries.

Automatic Grinder Model DMSQ-C is the best choice for sharpening center.


Automatic Grinder Model DMSQ-CMain Function Deployment (excerpt)

01. Location rolling linear guide rail
02. Centralized refueling device
03. Scraper jig (optional device)
04. Imported electrical components (optional device)

Automatic Grinder Model DMSQ-C Main technical parameters

Wheel Size-------------------------------------------------------------------------------------Cylindrical Φ200×Φ150×100（Φ300×Φ250×100）mm
Maximum grinding width--------------------------------------------------------------------taken 22°as final 300 mm
Effective height of the grinding wheel and table--------------------------------------80 mm
Table rotation----------------------------------------------------------------------------------0∼±90 °
Grinding rotation speed---------------------------------------------------------------------Adjustable Frequency
Grinding movement speed-----------------------------------------------------------------3∼15 m/min(Adjustable Frequency)
Movement electromotor power------------------------------------------------------------0.55 KW
Grinding head motor power----------------------------------------------------------------3(7.5) KW
Pump motor power---------------------------------------------------------------------------0.25 KW
