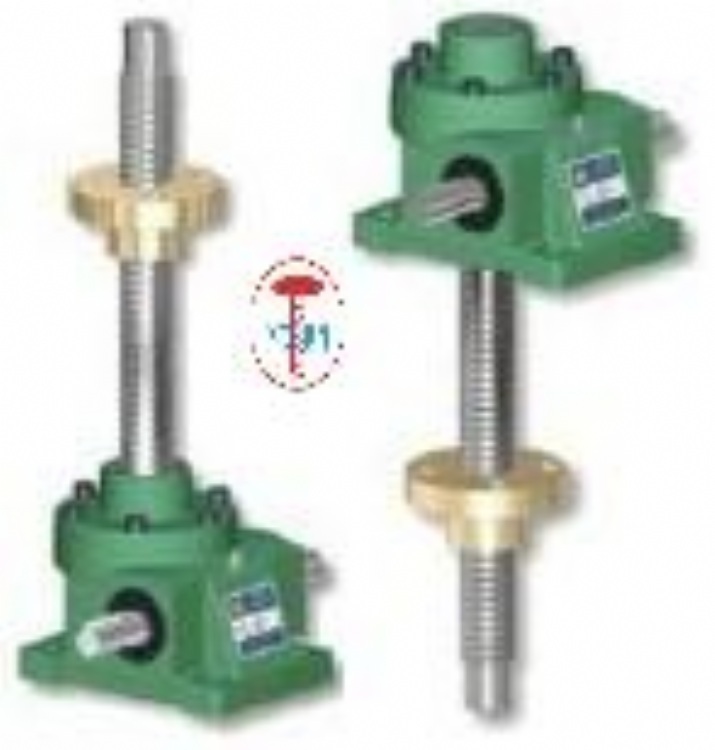

rotating screw jack
產品型號:RN-0.5T~RN-100T
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化輸送設備
產品特色
Q: What is rotating screw jack?
A: A lifting screw keyed to the worm gear as a single unit, forcing the lifting screw to rotate, but not translate. A traveling nut, attached to the load, is driven by the rotation of the lifting screw. This type jack is ideal for applications that can not accommodate a screw protection tube and save enough mounting space.
NOSEN rotating screw jacks are popular on the world market with below features:
1. Model: RN-0.5T, RN-1T, RN-2T, RN-3T, RN-5T, RN-10T, RN-15T, RN-20T, RN-30T, RN-40T, RN-50T, RN-100T
2. Function: Precisely controlled lifting, lowering, pushing, pulling and rolling movements
3. Self locking trapezoidal screw, heavy duty, low efficiency, use infrequently
4. Arrangement: Single units, in pairs or multiple jacks systems, fully synchronization
5. Power Source: Electrical driven, manual operated
6. Travel Speed:
* 1 turn 1 mm travel, 1500 mm/min
* 1 turn 0.5 mm travel, 750 mm/min
* 1 turn 0.25 mm travel, 375 mm/min
7. Application Industries:
Precision lift table, roll forming machines, press machines, tunnel freezer, surface-gringing machines, satellite dish antenna, solar tracking system, sluice gate, theatre stage, slitting line, precision leveler, powered straightener, paper machines, food processing machines, textiles machines etc.
產品規格
Precisely controlled lifting, lowering, pushing, pulling and rolling movements
