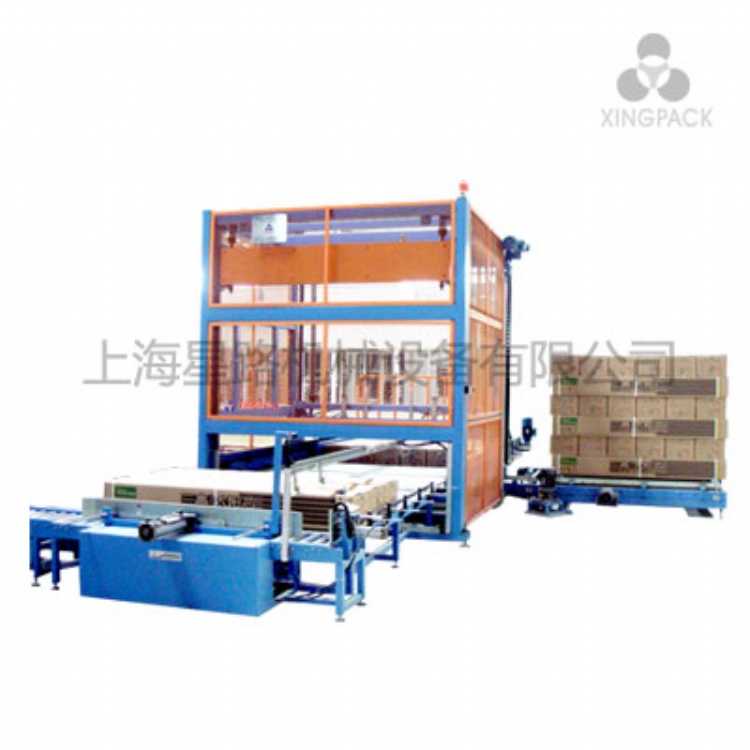

Automatic Palletizer XLB-MD
產品型號：XLB-MD
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 代客包裝服務
產品特色
The XLB-MD series of automatic Palletizing machine (also named carton palletizer) is suited for stacking the cartons, bags, bottles and boxes filled with container on the pallet in proper order automatically. Using the PLC touch-screen and intelligent technology, the operation process becomes much easier and faster.
The product link is as below:
Automatic Palletizer
產品規格
With the help of PLC, operators only need to control the touch screen to adjust the type of palletizing;
Save time and energy with its high-efficient palletizing;
Cartons supplying system is controlled by brake motor which can make the carton be conveyed according to the fixed order;
The board warehouse allow 12-15 empty boards and realize supplying the boards automatically;
Finish several kinds of palletizing without changing any parts;
Motor and reducer are both from NORD in Germany.
Detailed Parameters:
Power: AC/three phase/380V/9KW/50HZ
Air Consumption: 500NL/MIN（Air using：5-6kg/cm2）
Dimension: (L)7,300mm×(W)4,100mm×(H)3,300mm
Speed: 25carton/min
Weight: 6500kg
Company info:
CE approved
ISO 9001 Certificated
For information about more products, please visit: http://xingpack.com.cn/index-en.php
