flat and profile wire rolling mills
產品型號：YKK
產品分類：紡織染整成衣暨縫製機械 / 製鞋產業 / 拉鍊•線•粘扣帶
產品特色

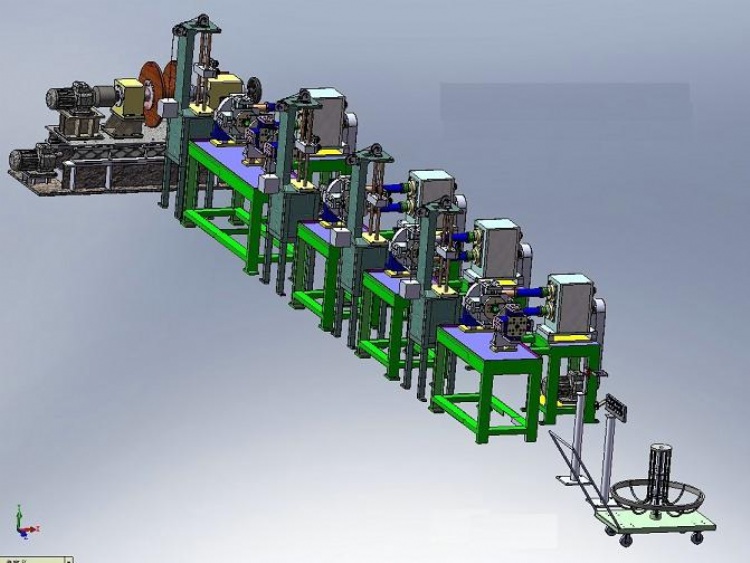

Flat copper cold rolling mill making FFC cable used for Airbag:
Flat copper cold rolling mill making FFC cable used for car Airbag
This machine is for making Bare flat copper conductors which is using PV Ribbon Wire , Tinned plated flat copper conductors ,They are widely used digital camera,DVD,SRS Airbag ,VCD,CD-ROM,LCD,mobile,TV,printer,fax machine,copier,scanner,security equipment,stereo equipment,minitype electric machine,motor,code spraying machine,LED,LCD screen,Auto air sac,computer,video recorder,camera,laptop,Learning Machine,POS printer and so on…
Machine capacity
Tinned plated flat copper conductors which is using FFC - Input wires Diameter: Ø0.4mm ~ Ø0.11mm - Output conductors Dimension : Width. 1.27mm ~ 0.3mm , Thickness. 0.1mm ~ 0.035mm - Machine speed: Standard. 120m/min , max. 150m/min - Spool spec : Standard. Din100, P2, P4, P5
Bare flat copper conductors which is using PV Ribbon Wire Input wires Diameter: Ø2.0mm ~ Ø0.4mm - Output conductors Dimension : Width. 5.00mm ~ 1.00mm , Thickness. 0.5mm ~ 0.15mm - Machine speed: Standard. 120m/min , max. 150m/min - Spool spec : Standard. P4, DIN-355
產品規格
Flat copper cold rolling mill making FFC cable used for Airbag:
Flat copper cold rolling mill making FFC cable used for car Airbag
This machine is for making Bare flat copper conductors which is using PV Ribbon Wire , Tinned plated flat copper conductors ,They are widely used digital camera,DVD,SRS Airbag ,VCD,CD-ROM,LCD,mobile,TV,printer,fax machine,copier,scanner,security equipment,stereo equipment,minitype electric machine,motor,code spraying machine,LED,LCD screen,Auto air sac,computer,video recorder,camera,laptop,Learning Machine,POS printer and so on…
Machine capacity
Tinned plated flat copper conductors which is using FFC - Input wires Diameter: Ø0.4mm ~ Ø0.11mm - Output conductors Dimension : Width. 1.27mm ~ 0.3mm , Thickness. 0.1mm ~ 0.035mm - Machine speed: Standard. 120m/min , max. 150m/min - Spool spec : Standard. Din100, P2, P4, P5
Bare flat copper conductors which is using PV Ribbon Wire Input wires Diameter: Ø2.0mm ~ Ø0.4mm - Output conductors Dimension : Width. 5.00mm ~ 1.00mm , Thickness. 0.5mm ~ 0.15mm - Machine speed: Standard. 120m/min , max. 150m/min - Spool spec : Standard. P4, DIN-355
