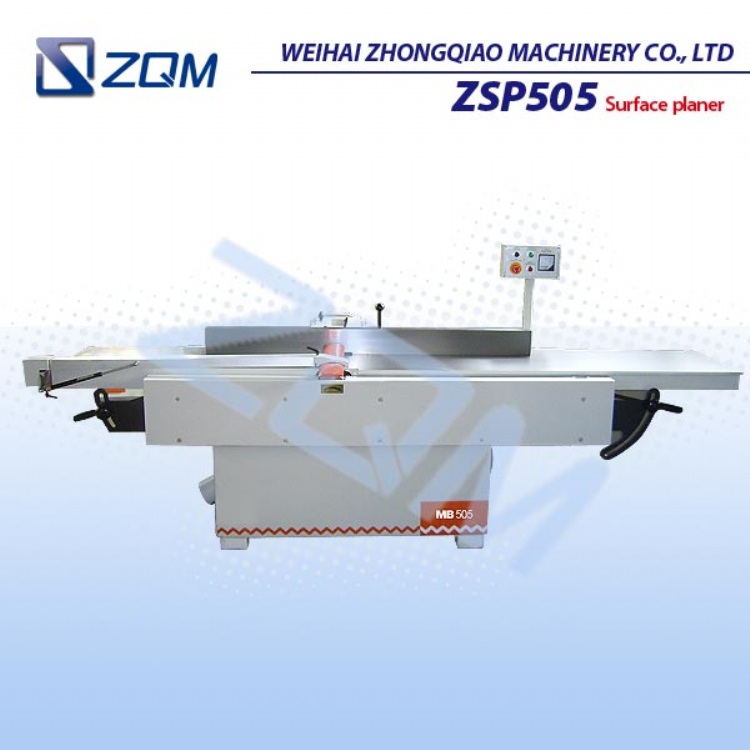

Zsp505 Surface Planer
產品型號：ZSP505
產品特色
ZSP505 &504 is specially designed for our Italian customer, is the newest model SURFACE PLANER which is developed by ZQM. It follows the newest European standard, and is sold well in European market. It has tight frame and novel appearance, compared with traditional surface planer, it equips with high-mounted witch and bridge guard.
產品規格
PARAMETER Model ZSP504 ZSP505 Max. planning width(mm) 410 520 Total table length(mm) 2600 2940 Front workbench length(mm) 1440 1732 Max. cutting depth(mm) 8 8 Planing arbor rotation speed (rpm) 5000 5000 Planing arbor diameter (without blades) (mm) 120 120 Cutting circle diameter (mm) 123 123 Rip fence size (mm) 1200 x 180 1450 x 180 Fence tilting angle 45degree 45degree Motor power (KW) 4 5.5 Net weight (kw) 800 920 Overall dimension(cm) 260 x 45 x 80 294 x 55 x 80
