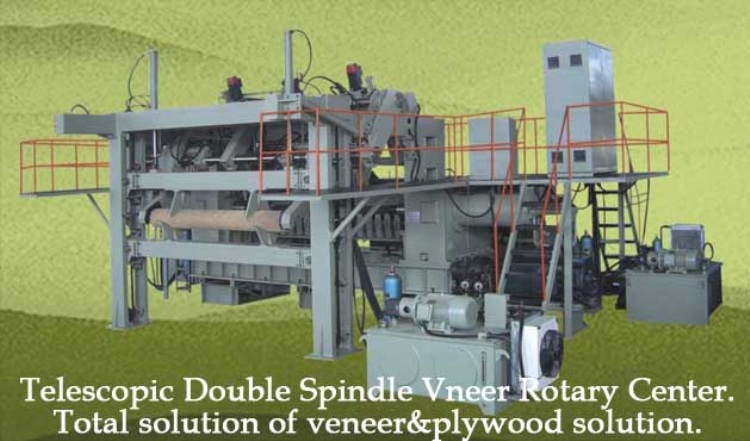

plywood machines,8 feet Telescopic Double Spindles Veneer Rotary Lathe
產品型號：BQK1626/8
產品分類：木工產業機械 / 薄片/合板製造 / 合板二次加工整廠設備
產品特色
within functions of log charger,log center,veneer rotary peeling,veneer clipper;maximum working log diameter 800mm,
產品規格
Peeling length: 2150-2700mm Peeling log diamter: 90-800mm Produced vneer thickness: 0.35-4.2mm Spindle diameter: 70mm(inner),160mm; Spindle rotation speed: 0-400rpm Main motor power: 160kw Feeding servo motor: 11kw Peeling knife gap servo motor: 3.7kw Hydraulic oil pump: 22kw,15kw,11kw Total motor: 229.7kw Dimension 9160*4800*4200mm Net weight: 30Ton
