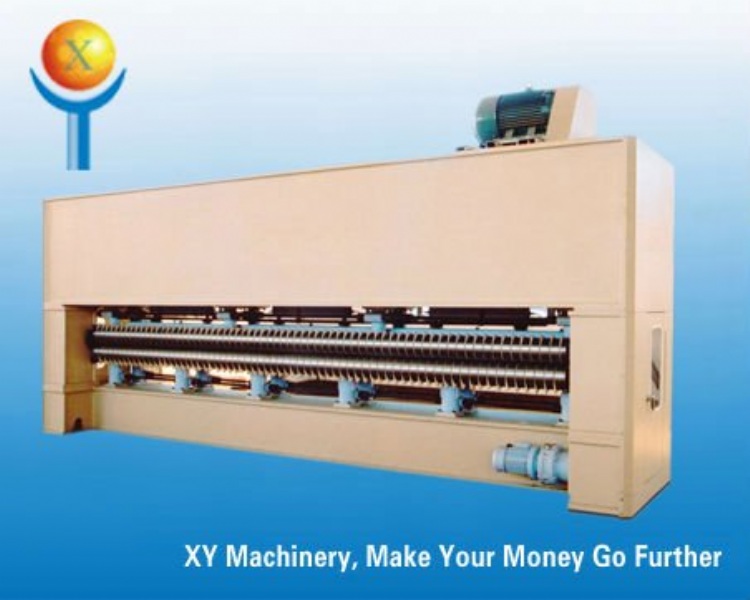

XYZC 201-400 High speed Pre-needle punching machine for non-woven fabrics
產品型號:XYZC 201-400
產品分類:紡織染整成衣暨縫製機械 / 紡織染整機械 / 不織布機械
產品特色
Place of Origin Jiangsu, China (Mainland)
Brand Name XY
Model Number XYZC 201-400
Needle punch production line Needle punch line
產品規格
Specifications:
Working width
4000mm
Stroke frequency
1000 times/min
Punch distance
50-60mm
Needle density
3000-5000 needles/m
Input speed
0.5-6m/min
Output speed
0.55-6m/min
Total installed power
17.25Kw
Output motor
1.5Kw
Outside dimension
(length X width X hight)
5000 X 1200 X1400
Working principle and application of equipment
This equipment is to feed the bulky web coming from web-lapping machine into punch area via feeding roller and guide coil, the web will become entangled and with initial tension after repeated punching. After this step, the web has gained certain tension and is then drawn by the output roller to the next step. The finished product can be base cloth of synthetic leather, geotextile, base cloth of waterproof asphalt felt, filtration material, decorating material, auxiliary material for clothing, blanket, and carpet etc.
Main products:
Down-stroke needle punching machine.
Up-stroke needle punching machine.
Double-side needle punching machine.
Upper & Down Stroke needle punching machine.
Double cylinder double doffer carding machine
Coiling and edge cutting machine
Feeding machine
Lapping machine
Opening machine
In addition, we also produce
Loose type setting production line which consists of Uncoiler - cloth container - dipping machine - dip calender machine - thermal-setting machine - cloth container - cutting & coiling
Punched Geotextile production line which consists of Web-lapping (layer) machine - feeding machine -pre-punch machine - main punch machine - main punch machine - fabric container frame - cutting and coiling
production line for after-treatment of synthetic leather base cloth which consists of Uncoiler - screen thermal-setting machine - ironing machine - fabrics container frame - cutting and coiling
production line for the thermal-setting of asphalt felt base cloth which consists of Uncoiler - screen thermal-setting machine - fabrics container frame - cutting & coiling
production line for the glue dipping of asphalt felt base cloth which consists
