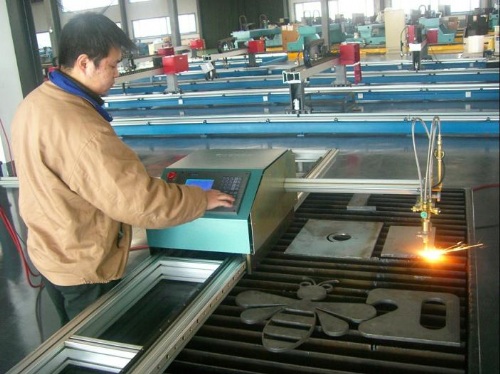

Portable CNC Cutting Machine
產品型號:HBST2005LCD-1200X2000
產品分類:工具機產業機械 / 焊接切割機械 / 高週波焊接,硬焊 銀,銅,軟焊錫設備
產品特色
HONEYBEE portable CNC cutting machine can cut any complex profiles on metals, which reduces machining again and improves productivity. It supports both plasma cutter and oxy-fuel cutting torch With its USB port, the data transmission from a PC is as easy as downloading photos from a digital camera.
The compact design and lightweight, small size and easy to move. It is usable both indoors and outdoors. The FastCAM programming software is easily learned and supports both drawing and nesting.
We have obtained ISO9001:2000 Certificate, CE Certificate and Patent Certificate ( Patent No. ZL 2004 2 0113009.5).
HONEYBEE portable CNC Cutting Machine is an ideal equipment for the small and medium-scale enterprises. HONEYBEE portable CNC Cutting Machine can be widely applied in industries such as automobile, shipyard, locomotive, petrochemical, aviation and aerospace, boiler and pressure vessel, machinery, decoration and large-size metallic signs.
The cutting and blanking of metal plates such as carbon steel (flame cutting) and stainless steel, copper, aluminium etc. (plasma cutting) can all be peformed by HONEYBEE. It is a replacement of hand-held flame torch, hand-held plasma cutter, profile and pantographic shape cutting machines.
產品規格
Mode: HBST2005LCD-1200X2000
Input Power: 220V/110V 50-60 Hz
Rated Power : 180W
Efficient Cutting Range: X Axis :1200 mm(47")-Y Axis:2000 mm( 78")
Y Axis: Can be extended till 6000mm(236")
Dimensions of LCD display: 5.7"
Cutting Thickness:( Flame ) 0.2"-5.9"(6-150mm )
Weight: 70.5kg (156 lbs)
Type of Cutter: Oxy - Fuel or Plasma
Applicable Cutting Fuel: Acetyene,Propane,LPG,Gasoline
Fuel Pressure: Max.0.1MPa (14.5 PSI )
Oxygen Pressure: Max.1.5MPa (218 PSI )
Cutting Software: FastCAM
Z Axis Manually Adjustable, Inclinable
