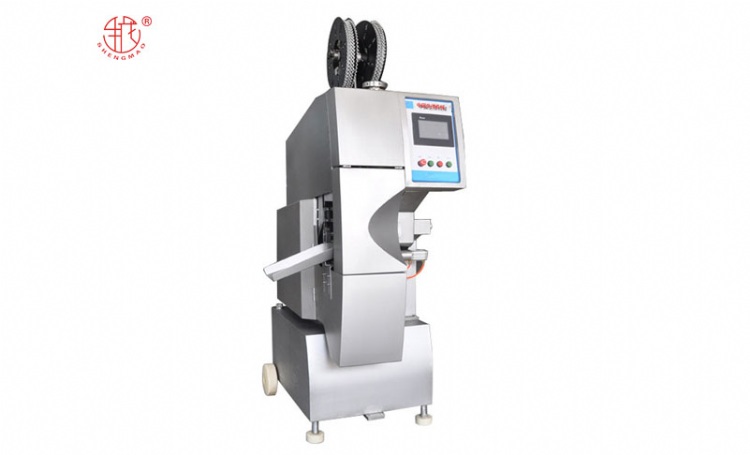

Automatic Mechanical Great-Wall Double Clipper
產品型號：02
產品特色
Mechanism Automatic Double Clipper is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer. The voiding separator provides portions of precise weight, which are clipped as single sausages or rings. Trend-setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.
產品規格
Automatic Double Clipper series built with the Japan Panasonic servo motor as the drive system, the man-machine interface from Taiwan and the Japan Mitsubishi PLC. It is designed with the state-of-the-art forced wire-feed mechanism, featuring precise and clear action.
Technical parameters:
|
Model |
Clip Speed(time/min) |
Applicable Clip |
Casing Range(mm) |
Power(kw) |
Voltage(v) |
Weight(kg) |
Size(mm) |
|
JCK-120 |
120 |
15-6/15-7/15-8/15-9 |
32-90 |
2.7 |
380 |
370 |
980x880x1800 |
|
JCK-130 |
100 |
15-6/15-7/15-8/15-9 |
32-130 |
2.7 |
380 |
420 |
1200x1320x2000 |
|
JCK-160 |
80 |
18-6/18-7/18-8/18-9/18-10/18-11/18-12 |
50-160 |
3.5 |
380 |
960 |
1300x1360x2200 |
Advantages of Automatic Clipping Machine
Ranked as Top Leader in China in terms of productivity and equipment faults.
Tough stainless steel Design construction guarantee extensive machine life.
Ensures resistance to aggressive cleaning.
Easy touch means simple and convenient machine operation.
Friendly user interface makes the machine control easier.
Operator is quided intuitively through the flat menu structure with informative
and can easily control the complete machine at the touch of a finger.
Programs set of parameters easily managed screen and settings speed up product
change rapidly.
More information please view here.
