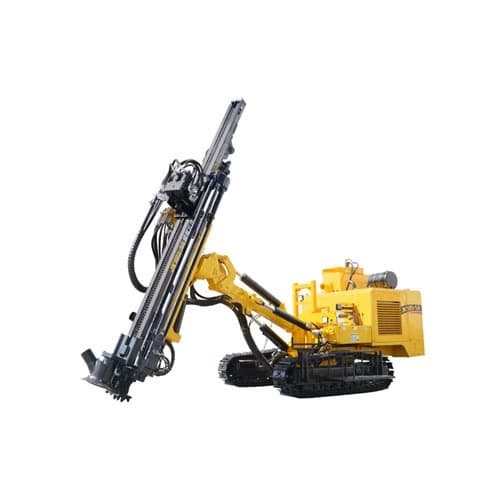

JK595-5A Crawler Mounted Hydraulic DTH Drilling Rig (with Auxiliary Rod Changer)
產品型號：JK595-5A Crawler Mounted Hydraulic DTH Drilling Ri
產品特色
JK595-5A Crawler Mounted Hydraulic DTH Drilling Rig (with Auxiliary Rod Changer)
產品規格
Crawler-mounted hydraulic DTH drilling rig is equipped with auxiliary rod changer, which enables one-person operation. With a power unit composed of diesel engines and hydraulic oil pumps, the rig is efficient and energy-saving. A hydraulic motor facilitates drilling, feeding, lifting, walking and hydraulic cylinder positioning.
Features
Equipped with auxiliary rod changer, the rig can be operated by one operator.
Applications
The surface drilling rig is mainly used for hydro-power engineering, open pit mining, road construction and blasting operation of national defense engineering.
|
Model |
JK595-5A |
|
Borehole diameter |
90-165mm |
|
Drill rod length |
50m |
|
Drill rod carousel |
5×3m |
|
Applicable rock hardness |
f=6-20 |
|
Working air pressure |
1.2-2.5MPa |
|
Air consumption |
11-21m³/min |
|
Feeding stroke |
4138mm |
|
Max. horizontal drilling height |
3370mm |
|
Rotation rate |
0-150rpm |
|
Rotation torque |
3300N·m |
|
Walking speed |
2.2km/h, 3.6km/h |
|
Grade ability |
24° |
|
Power |
Weichai 73.5kW |
|
Dust collector |
Hydraulic dry dust collector |
|
Wet dust collector (optional) |
|
|
Dimension (L×W×H) |
7000×2400×2700mm (2200mm without drill rod carousel) |
|
Weight |
7900 kg |
