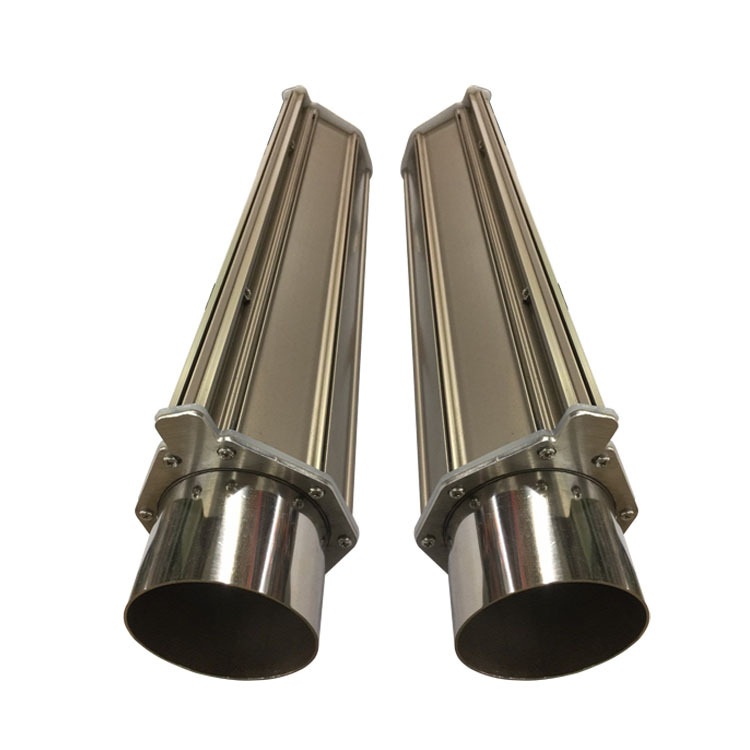

Aluminum alloy air knife for air blower drying system

Air knife characteristic:

1) air knife with aluminum alloy for the blade body, making precision, the wind has the characteristics of high efficiency, rapid, practical and reliable.

2) The structure adopts unique design to ensure the wind resistance is small, the wind speed is average, the wind shape is uniform, and the accuracy can reach + 5%.

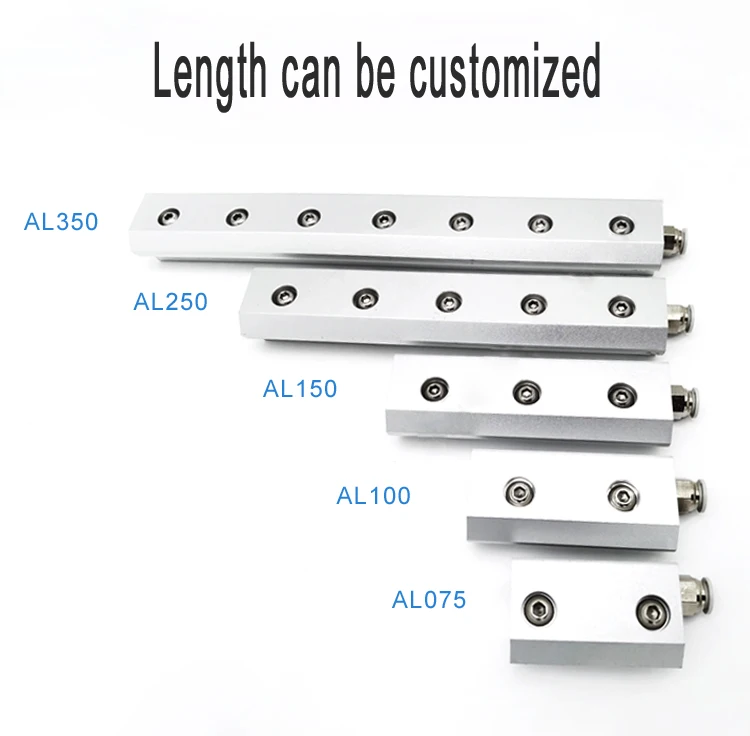

3) air outlet width adjustable (0.5-2mm), a variety of air inlet caliber and position optional, easy installation. Custom length up to 6 meters.

4) Air intake caliber to meet the requirements of different air volume (50mm),  easy installation.

5) It can be matched with hot air blower. It can be dried by hot air or dried or sterilized by hot air.

6) Except for my dry use, also can be used as air curtain isolation, reduce the cold / hot air loss.

7) According to the shape of special-shaped structure design, production, in order to achieve the best effect. The utility model can simplify the working procedure and improve the efficiency, and is suitable for the use of large workpieces.

Application:

The air knife produces a powerful wind screen which can be used in various blowing and air cooling applications, for example:
1)  automotive industry: for blowing extra water, cooling liquid, dust, crumbs, etc., and spraying, cooling, drying and dust removing before plate spraying.
2)  the electronics industry: electronic circuit boards in the assembly before the rapid drying.
3)  canned drinks and bottles: beverage bottle label, inkjet or packaging, bottle or bottle of water and attachments blowing.
4)  The chemical industry: before labeling or packaging, the surface chemicals or moisture blowing.
5)  Food and medicine: in the manufacture or packaging before the water and attachments blowing, or bagging before opening and bag dust removal.
6)  Metal industry: blowing away coolant or other liquid from metal surface. Surface drying or cooling before Yu Paoguang, electroplating and spray painting.
7)  Rubber and plastic industry: blow off the surface dust or chip. Drain or dry before injection. Product cooling after injection molding.
8)  Printing (inkjet): inkjet, before printing dust, debris, water vapor blowing, or used in ink quick drying.

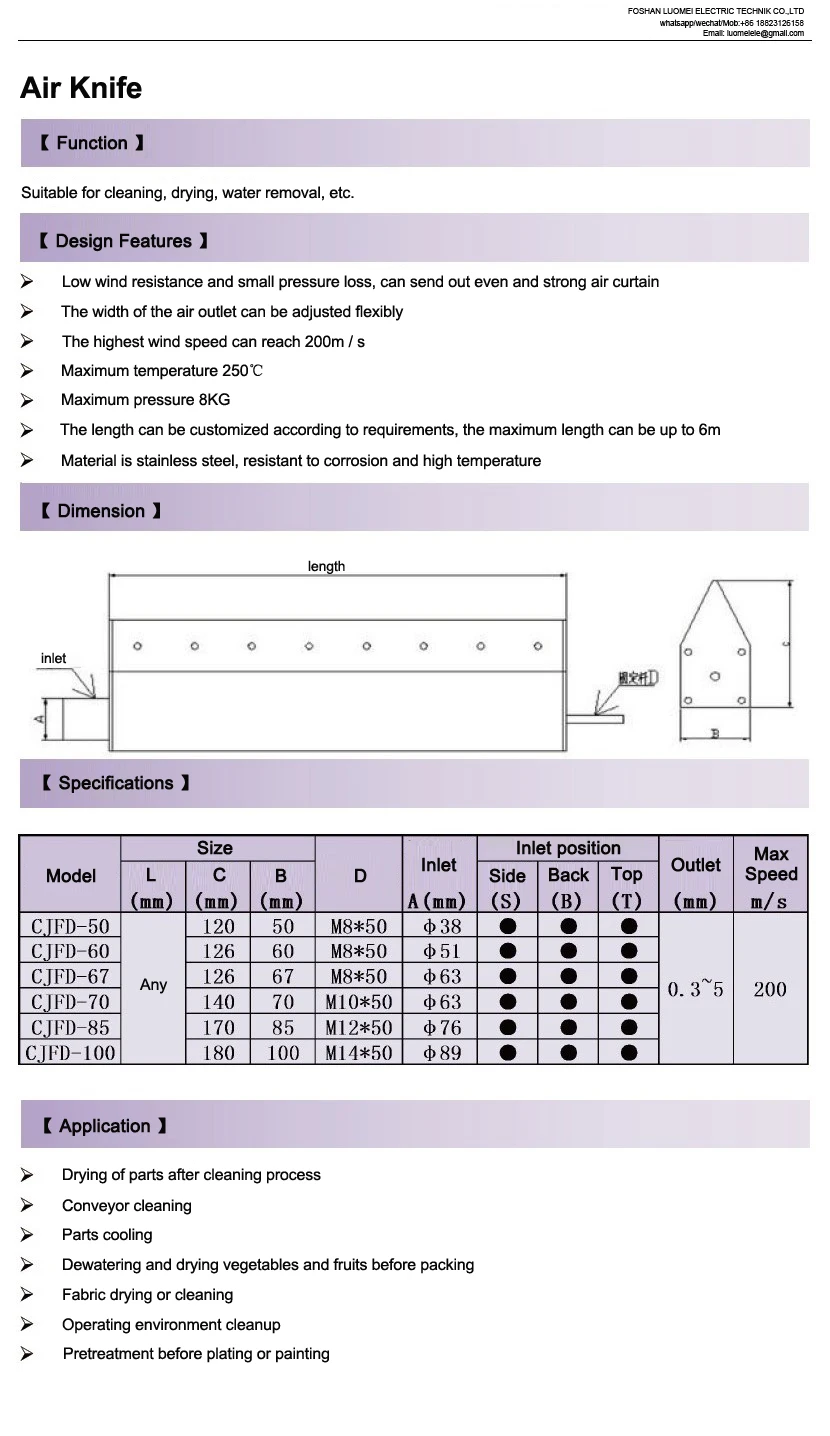

Specification

Note:

1) Super air knives above 450mm should have air intake at both ends as much as possible. The longer the length is, the air inlets should be increased accordingly, otherwise the effect of the air knife will be affected. 2) The super air knife deliquoring and purging distance should be between 20mm and 60mm, otherwise the effect will be reduced.

3) Compressed air should be 0.55~0.69Mpa.

4) An air filter should be used to ensure the air is dry.

5) The distance between all filters and the objects to be blown should be controlled within 5meter.

6) When connecting the hose, no foreign objects can enter the hose.

7) The air consumption stated in the above table refers to the super air knife with a port clearance of 0.05mm.

Circular air knife/air knife:

Features: low noise, low air consumption, no moving parts, maintenance-free, powerful blowing force, efficient water and dust removal.

Application: Widely used in cable and wire, steel pipe, automobile manufacturing, metallurgy, extrusion products, steel, plastic hose and other industries for rapid cooling, dust removal, drying, cleaning, etc.

Material: Aluminum Alloy & Stainless Steel (Special materials can be customized)

The company develops, produces and sells various types of circular air knives/air knives. The standard size models are shown in the table below. If there are special specifications and sizes, they can be customized according to customer needs. We will provide customers with free designs. Please feel free to contact us.
