RUIFEN減速機

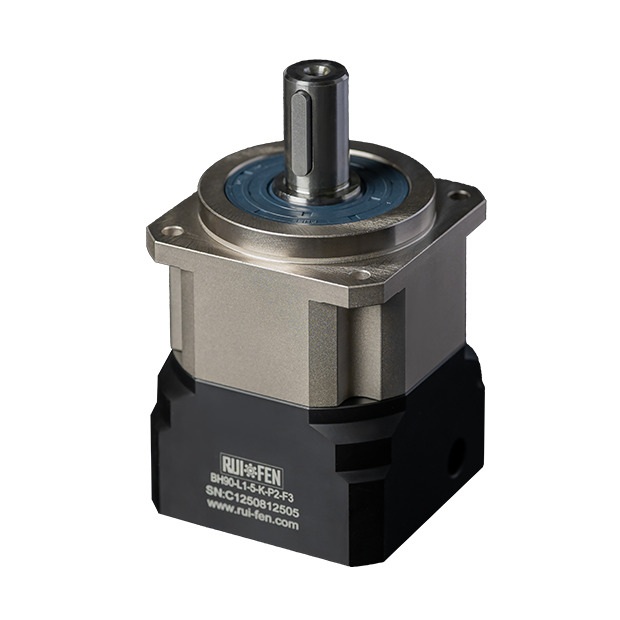

產品型號：BH90-L1 行星式減速機
產品分類：自動化設備/產業機械 / 自動化設備 / 工業用機器人及週邊設備
產品特色
BH90-L1-5 行星式減速機 例如:BH90-L1-5-K-P2-F3
BH 低背隙行星式減速機
最低精密背隙可達3弧分、標準背隙5弧分
低噪音、高精準、斜行星齒輪，
一段3~10比、二段15~100比
Contact Us Now Mail : [email protected]
產品規格
The BH Series Low Backlash Planetary Gearbox is specifically engineered for high-precision motion control applications, providing exceptional performance and reliability when coupled with servo motors.
Key Advantages:
-
Ultra-Low Backlash: Achieves an ultra-precision backlash of just 3 arcmin, ensuring maximum positioning accuracy and dynamic performance. The standard model offers a competitive backlash of 5arcmin.
-
High Precision & Low Noise: Utilizes Helical Planetary Gearing (or Precision Ground Helical Gears) for smoother power transmission, reduced vibration, and an exceptionally low noise level compared to standard spur gears.
-
High Rigidity: The gearbox design provides high torsional stiffness to handle demanding, high-speed reversing cycles.
-
Wide Ratio Range:
-
Single-Stage (L1) options cover ratios from 3 to 10.
-
Dual-Stage (L2) options offer a broad range of ratios from 15to100.
-
-
Motor Compatibility: Perfectly suited for integration with various servo motor brands, typically accommodating power ratings from 0.2kW up to 1kW.
Model Nomenclature Example Breakdown:
| Code (ex: BH90-L1-5-K-P2-F3) | Description |
| BH | Series Code (Low Backlash) |
| 90 | Frame Size / Outer Diameter |
| L1 | Reduction Stage: Single-Stage |
| 5 | Gear Ratio (e.g., 5:1) |
| K | Output Shaft Type (e.g., Keyway Shaft) |
| P2 | Backlash Level (e.g., P2 Standard Backlash) |
| F3 | Output Flange Type / Mounting (or Input Flange Type) |
