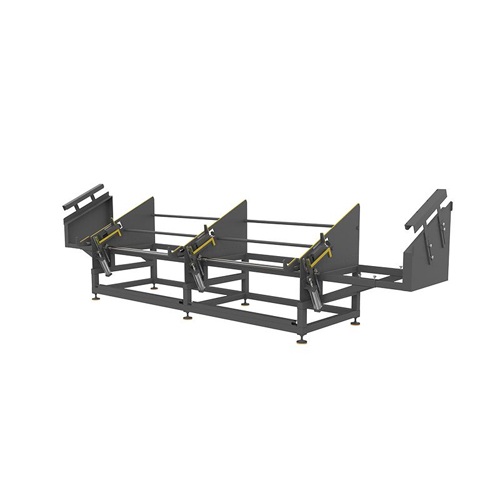

NH-6016TA Cylinder Type Laser Pipe Cutting Machine Feeding Device
產品型號：NH-6016TA Cylinder Type Laser Pipe Cutting Machine
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化焊接設備
產品特色
NH-6016TA Cylinder Type Laser Pipe Cutting Machine Feeding Device
產品規格
1. The Cylinder Type Laser Pipe Cutting Machine Feeding Device is driven by a cylinder to achieve movement, without other power consumption, energy-saving and environmentally friendly.
2. The pipe slides down to the feeding claw by its own weight, without the need to use other components such as chains to drive, reducing the probability of equipment failure.
3. Supports automatic feeding of round pipes, square pipes, rectangular pipes, angle steels, channel steels, H-shaped steels, I-shaped steels and other profiles.
Technical Parameter
|
Material |
Stainless steel pipe, carbon steel pipe, aluminum pipe, etc. |
||
|
Applicable pipe specifications |
Round tube diameter |
φ20mm-φ160mm |
|
|
Square tube diameter |
20mm-160mm |
||
|
Rectangular tube size |
The maximum aspect ratio is 1.5:1, and the cross-sectional side length is 20mm-200mm |
||
|
Pipe length |
3m, 6m, 9m |
||
|
Loading time |
Round tube |
First loading: 70S |
Cycle feeding: 30S |
|
Square tube, rectangular tube |
First loading: 70S |
Cycle feeding: 30S |
|
|
Silo load bearing weight |
1.5T |
||
|
Maximum weight of a single piece |
100Kg |
||
The pipe automatic feeding device provided by New Hope is a precision-engineered system that integrates with cutting, polishing, or CNC machines to enable continuous production cycles without manual intervention. Utilizing advanced servo motors and smart sensors, it guarantees accurate pipe alignment and feed-rate control, making it ideal for high-volume manufacturing environments.
