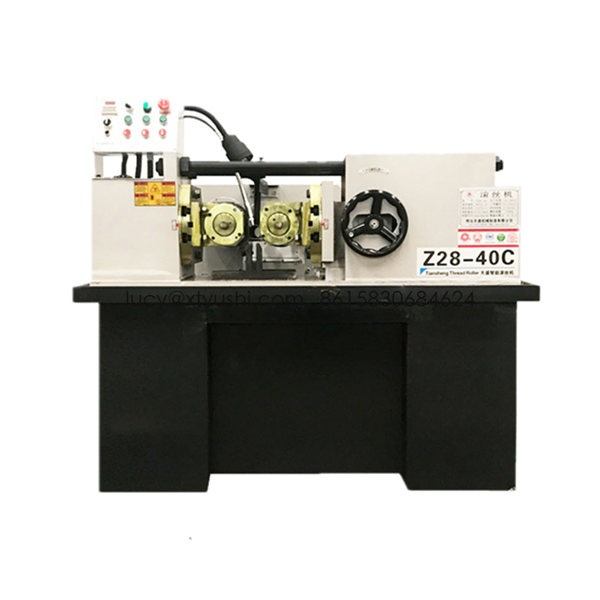

Z28-40 screw thread rolling machine
產品型號:Z28-40 screw thread rolling machine
產品特色
Z28-40 screw thread rolling machine
產品規格
Screw Thread Rolling Machine is a versatile and efficient solution for producing threads across various industries. From hardware construction to automotive components, these machines have revolutionized the manufacturing process. The Two-axis thread rolling machine and Three-axis thread rolling machine cater to different production needs, offering superior precision and strength in thread formation.
Thread rolling, performed by a Screw Thread Rolling Machine, offers multiple benefits:
High Production Rates: Enables mass production of threads quickly and efficiently.
Enhanced Tensile Strength: Work hardening during the process increases thread durability.
Superior Surface Finish: Produces smooth, uniform threads with reduced surface defects.
Material Versatility: Suitable for steel, aluminum, brass, plastic, and more.
No Material Wastage: A chip-free process ensures cost-efficient thread production.
Items |
Parameters |
|
Thread rolling thread range |
diamete |
φ4-φ36mm |
thread pitch |
0.5-4.0mm |
|
Spindle Angle |
±6° |
|
Maximum rolling pressure |
120kn |
|
Spindle RPM |
Exchange gear 39/49/66/82rpm |
|
Thread rolling wheel range |
diameter |
φ120-φ170mm |
aperture |
φ54mm |
|
Maximum width |
100mm |
|
Spindle drive power |
4.0kw |
|
Hydraulic transmission power |
2.2kw |
|
Physical size |
1450×1300×1300mm |
|
Machine weight |
1100±50kg |
Maximize efficiency with a Screw Thread Rolling Machine. Designed for precise, durable, and high-speed threading of screws and rods.
