產品規格

Size: 1/2”- 10”.
Pressure Rating: CLASS 150
Body Material: Cast Iron(ASTM A126-B) and Ductile Iron(ASTM A536)
Operation: Lever, Worm Gear, Electrical, Pneumatic, Hydraulic
Design: ANSI B16.1
Face to Face: ANSI B16.10
Test: API 598

Features:

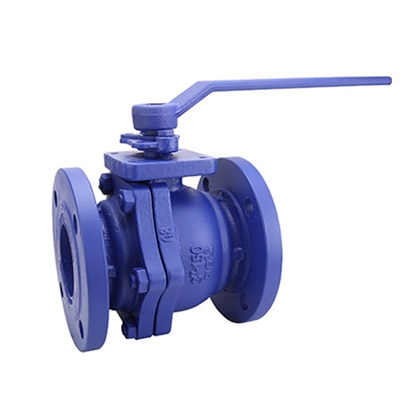

Leflow’s ANSI Cast Iron Ball valve is 2pc type, End can be flange and thread, 125LBS and 150LBS rating.

ASTM A126-B body ball valves can be used in many industries like water distribution networks, food and pharmaceutical plants, water treatment, power plants and so on.
1.The stainless steel ball & stem and sealing mechanism ensures the valve for long life usage.
2.It is advised to be used either at fully open or fully closed position.
3.The Cast Iron ball valves open/close position can be easily observed from the position of handlever easily.
4.PTFE sealing provides long service life with zero leakage rates.
5.The valves are designed for bidirectional usage.
6.Through its full bore design, pressure loss is almost at zero point.
7.By adding an ISO top flange, the valve operation can be maintained by gearbox, pneumatical or electrical actuator.
8.The valves are Anti-static and blowout-proof designed.
9.Extension Stem is also optional.
