產品規格

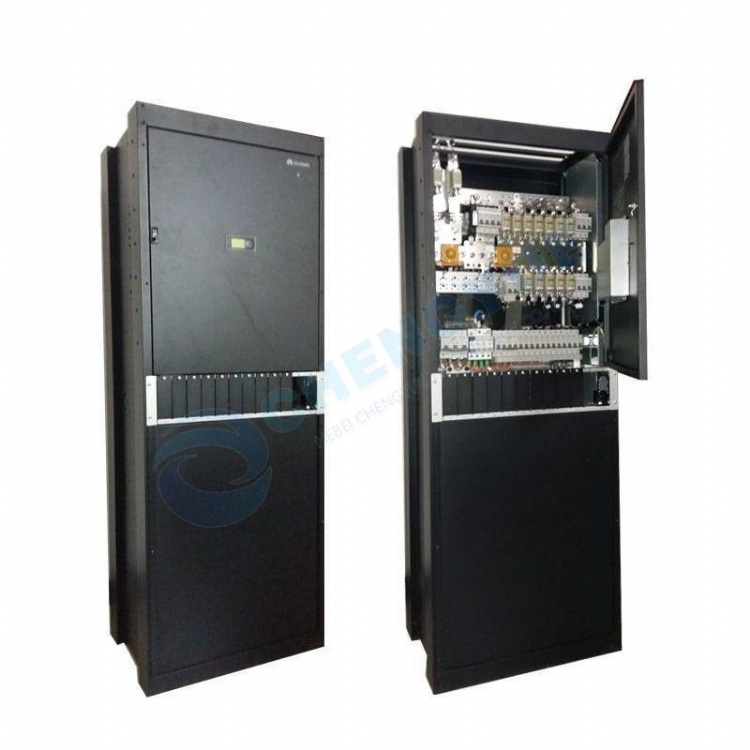

HUAWEI TP48600B Data center Indoor modular power supply system is an AC/DC indoor combination power supply system developed by Huawei, which can be configured with 12 1U 48V/50A rectifier modules, and the maximum configuration capacity of the system can reach 600A. This system can be flexibly applied to indoor DC power supply scenarios such as wireless, wired access networks, transmission network data centers, and enterprise network communication data centers.

Indoor integrated power supply Advantages

Rectification module efficiency>96%, energy-saving and emission reduction

Improved module sleep function to further improve system efficiency

The working temperature range of the rectifier module reaches -40~+75 ℃, and the output does not decrease at 55 ℃

Rectification module MTBF ≥ 500000 hours, high reliability

The power module supports lossless hot swapping technology, making installation and maintenance more convenient

Complete battery management functions to extend battery life

Monitoring module LCD display, achieving visual monitoring

Support front operation, front maintenance, and wall installation (distance from wall ≥ 100mm)

Main functions

The HUAWEI TP48600B Data center Industrial modular power supply system is flexibly applied to indoor DC power supply scenarios such as wireless, wired access networks, transmission network equipment rooms, enterprise network communication equipment rooms, etc.

For more details please contact Hebei Chengyue
