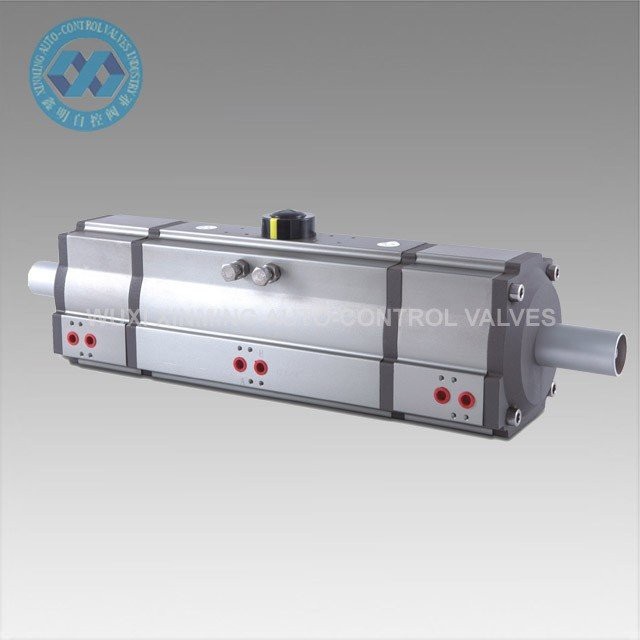

AT Pneumatic Actuator
產品型號：xinming
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化機械，氣壓式
產品特色
Quick Details
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
產品規格
Product Name: AT Pneumatic Actuator
Brand name: XM, and OEM is also accepted
Actuator size: 32mm-400mm
Rotary angle: 0°~90°(±5°)
Working Temperature Range: -20℃~ +80℃(standard)
-40℃~+80℃(low temperature)
-15℃~150℃(high temperature)
Air supply pressure: 0.2~0.8MPa, 10Mpa max
Top connection: VDI/VDE3845 NAMUR
Bottom connection: ISO 5211 and DIN3337
Material: Aluminum alloy
Structure: rack and pinion, dual rack pistons
Actuator body surface treatment: hard anodized, or dip oxidation
End Cap Color: black gray, black, dark blue, sky blue, red, orange, green,etc.
Certification: CE, ATEX, SIL3, ISO9001:2016
