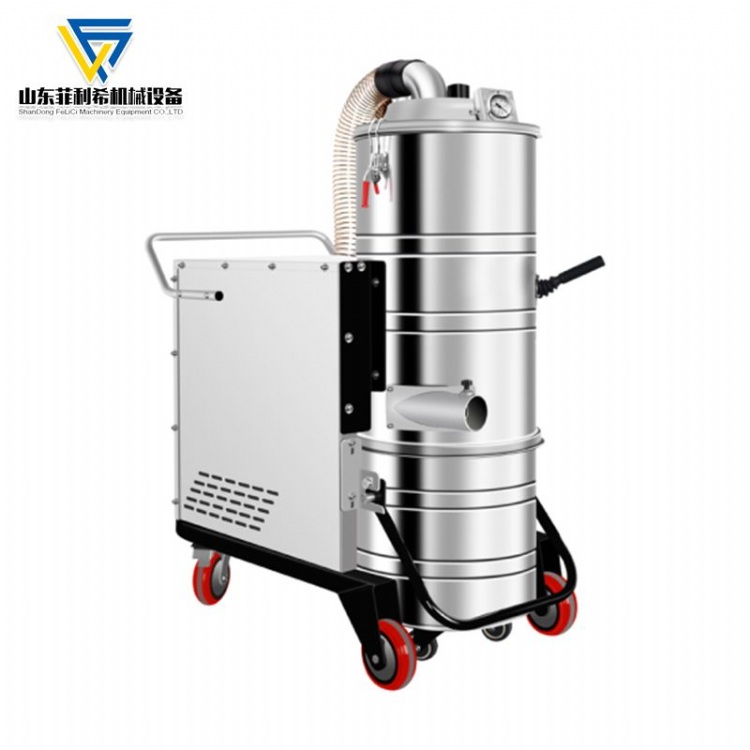

IV-5510 Electric Industrial Vacuum Cleaner Product Features

1. Multi-layer filtration, the exhaust air will not cause secondary pollution.

2. Use high negative pressure brushless turbine fan.

3. Manual dust vibrating function makes manual cleaning more convenient.

4. Equipped with a cyclone separation device to extend the filter clogging time.

5. Install a filter silencer at the exhaust outlet.

6. Vacuum negative pressure observation table, which can keep abreast of the filter load situation.

Introduction to the features of IV-5510 industrial vacuum cleaner

1.Product power and circuit

A. IV-5510 heavy industrial vacuum cleaner has overheating, overload and phase loss protection functions. The motor protection switch is very simple and safe to operate.

B. The motor adopts a brushless high-pressure blower, which is completely oil-free,water-free compression and maintenance-free. The dual-frequency (50/60Hz) and wide-voltage design enables it to meet the voltage levels of all regions in the world. The external bearing design enables the fan to withstand higher operating temperatures and improves the fan's reliability and service life. Let the machine work continuously all day long.

2.Filtration system for industrial vacuum cleaners

A. The innovative HP11000 is made of modified nylon fiber. It has a filtration area of 11,000cm² and a very smooth surface. It can reduce the dust adhesion rate by 80% and extend the filter clogging time by more than 21 times compared with traditional filters. Say goodbye to the past need to frequently clean the filter, improve work efficiency and reduce the user's work intensity. The 4-layer high-efficiency filtration system can filter dust particles as small as 0.3um, and the dust collection efficiency reaches 99.995%, ensuring that the exhausted air is 100% clean.

B. The machine has the function of backflushing and cleaning the filter element without stopping the machine. Cleaning the filter while working is more efficient.

3.The structure of the machine frame

A. The body and dust collection bucket are made of stainless steel, which has stronger load-bearing capacity and impact resistance. The dust bucket can be separated from the fuselage, which is very convenient when cleaning the garbage in the bucket. The 100L large-capacity dust collection bucket has higher collection efficiency.

B. Equipped with 4 super heavy-duty silent casters with built-in double bearing design, the movement is light, flexible and stable, and the load-bearing and wear-resistant performance is more outstanding.

C. The car body is equipped with a storage rack where commonly used accessories or simple tools can be placed, making it easier and faster to use and work.

4.Introduction to accessories

A. The wide vacuum blade has pulleys, making it easier to use. The vacuum bristles are wear-resistant up to 300,000 times and can be replaced, reducing the cost of use.

B. The 5-meter-long nylon vacuum hose can withstand a twisting force of 50KG for more than 100,000 times and is anti-cold and anti-aging. The hose has an automatic turning design to prevent knotting and deformation of the hose during work.

5. Application of industrial vacuum cleaners

IV-5510 heavy industrial vacuum cleaner is suitable for cleaning in a variety of places: such as plastic spraying dust in the plastic spraying workshop, wood chips from furniture processing, dust from ceramic processing, assembly line supporting operations in the electronic medicine workshop, iron filings from hardware processing, grinding dust, and ground grinding equipment. Waiting for cleaning.
